Instrument Cluster - DTC Table

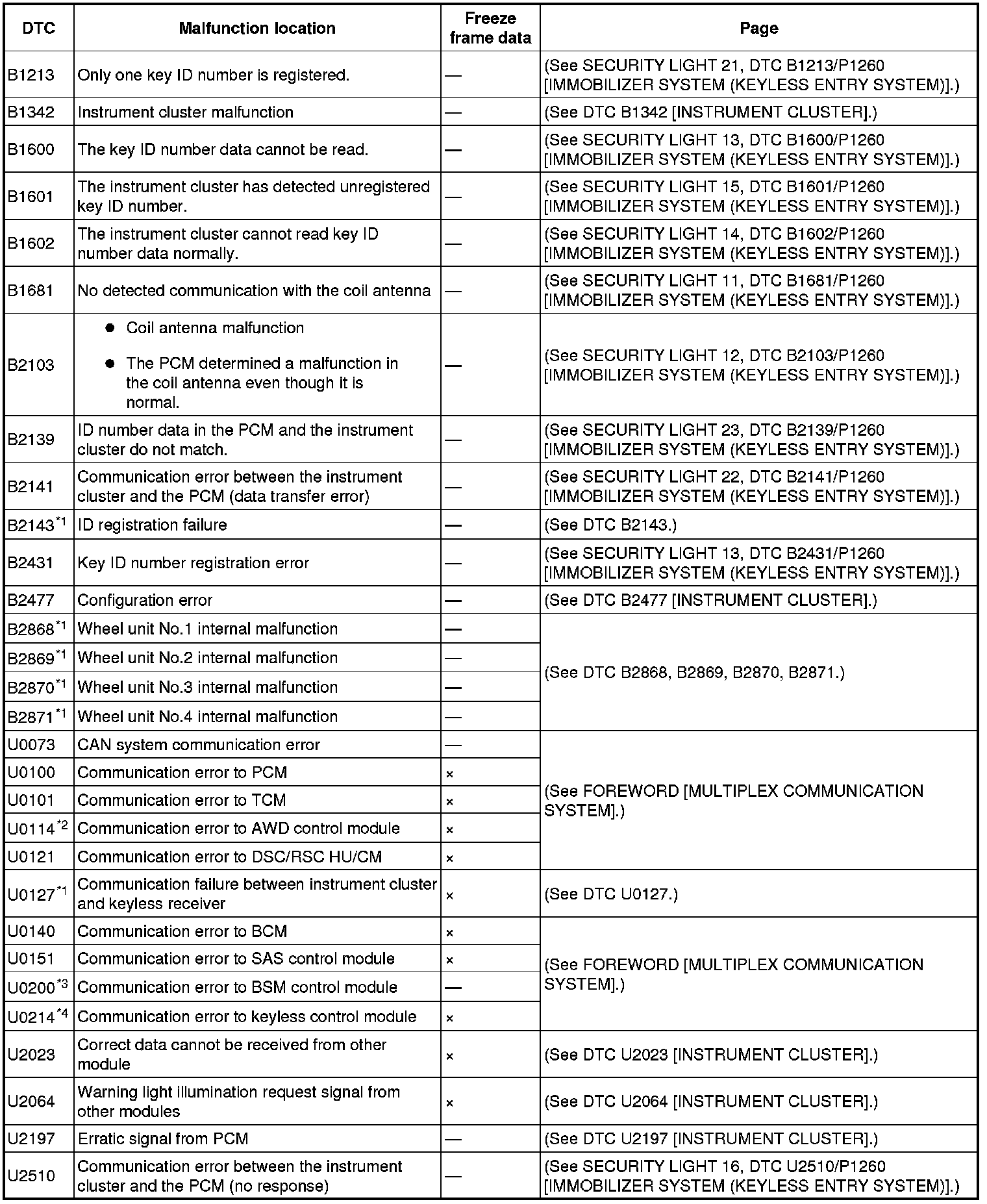

DTC TABLE [INSTRUMENT CLUSTER]









*1
Vehicles with tire pressure monitoring system
*2
AWD
*3
Vehicles with BSM
*4
Vehicles with advanced keyless entry and start system
