Headlamp Alignment Switch: Service and Repair

HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

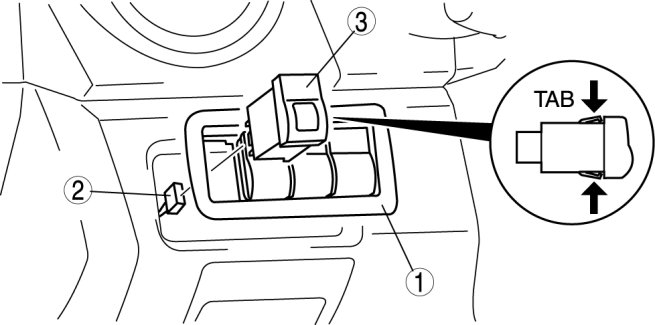

Switch Bezel Component Removal Note

1. Access the switch bezel component from behind of the dashboard, and squeeze the tabs of the switch bezel component.

2. Remove the switch bezel component from the dashboard.
