Removal and Replacement

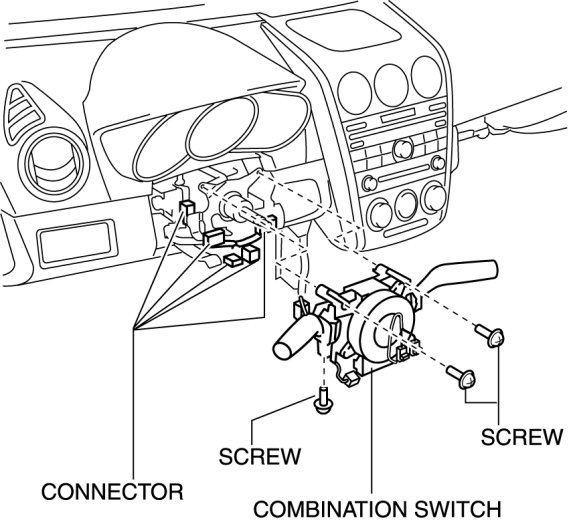

COMBINATION SWITCH REMOVAL/INSTALLATION

WARNING:
- If the negative battery cable or the steering angle sensor connector is disconnected, the stored initial position of the steering angle sensor will be cleared and the DSC will not operate properly, making the vehicle unsafe to drive. Perform the steering angle sensor initialization procedure after connecting the negative battery cable.

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation

b. Steering wheel Service and Repair

c. Column cover Service and Repair

3. Disconnect the connector.






4. Remove the screws.

5. Remove the combination switch.

6. Install in the reverse order of removal.

7. Perform the steering angle sensor reference point setting. Programming and Relearning
