Rear

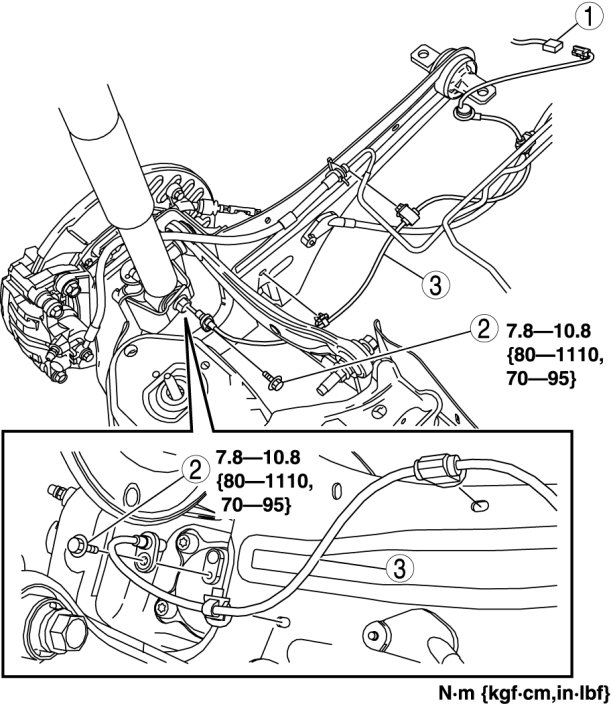

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD]

1. Remove the rear seat cushion. Rear Seat Removal/Installation

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
