Mazda
>>
2012
>>
CX-7 FWD L4-2.5L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

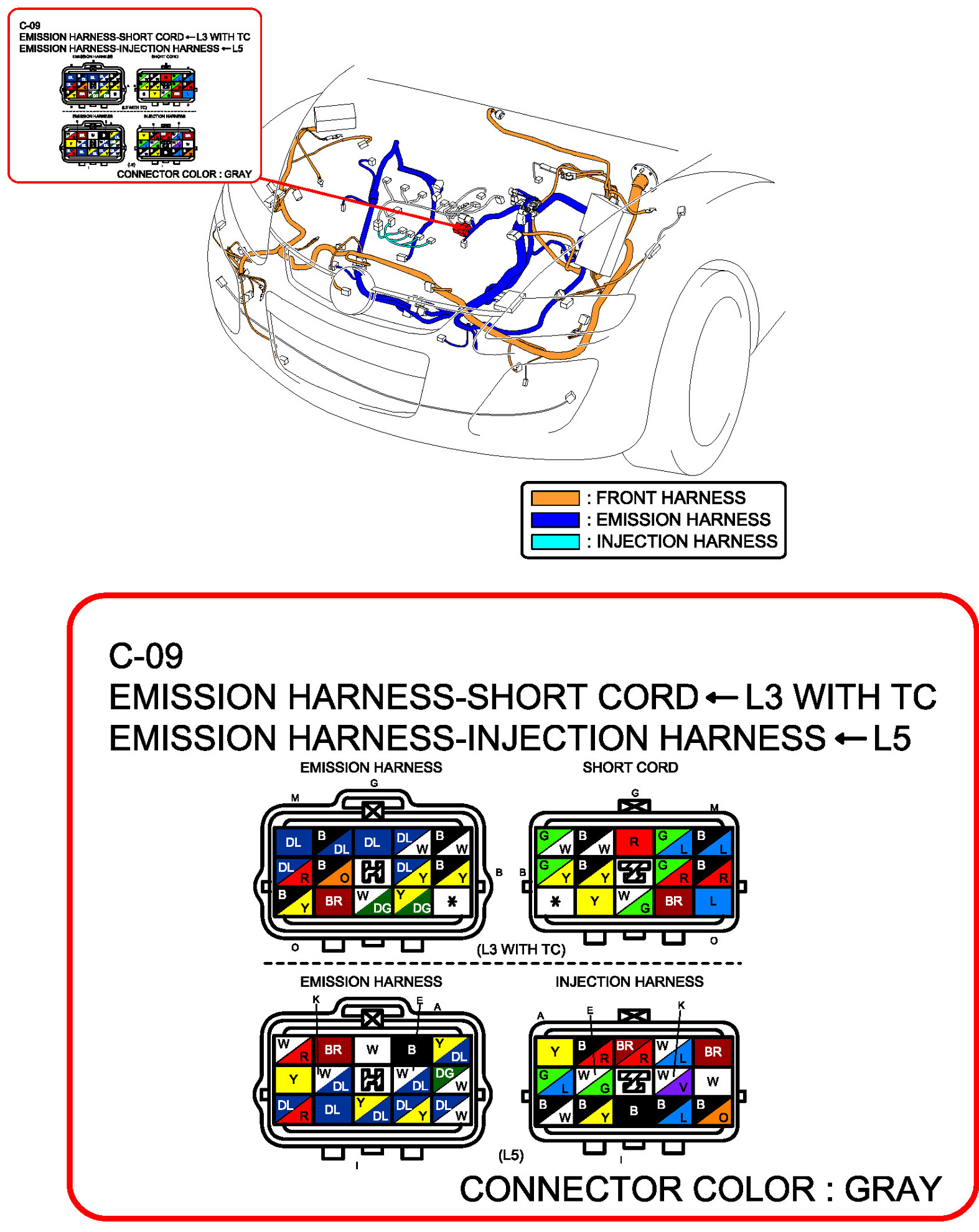

C-09 (Emission Harness-Short Cord, Emission Harness-Injection Harness)
C-09 (Emission Harness-Short Cord, Emission Harness-Injection Harness)
