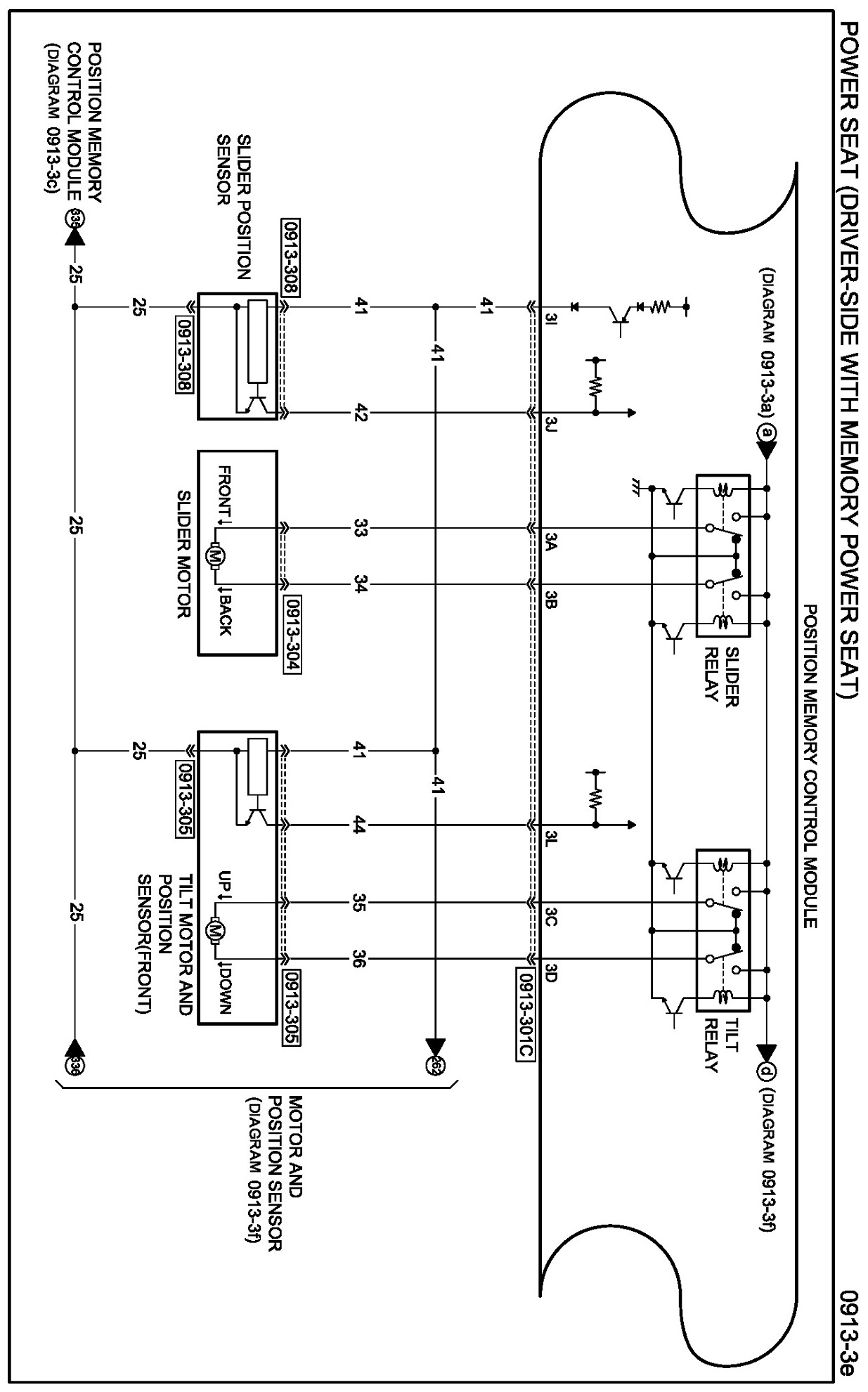

Diagram 0913-3e (Power Seat (Driver-Side With Memory Power Seat))
Diagram 0913-3e (Power Seat (Driver-Side With Memory Power Seat))
Diagram 0913-3e:
