Glove Compartment: Service and Repair

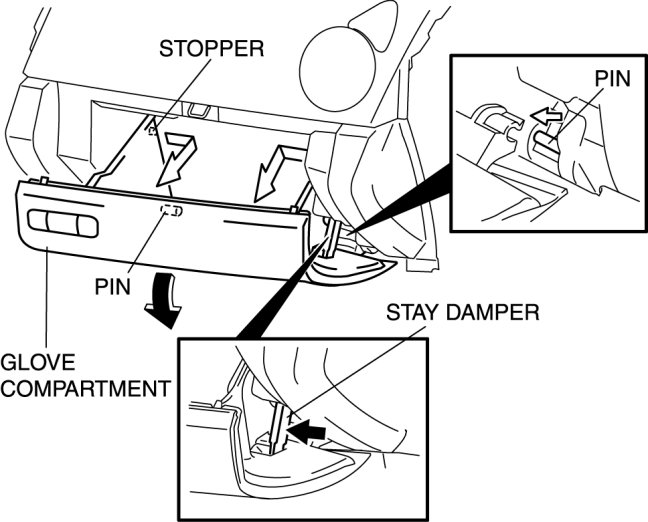

GLOVE COMPARTMENT REMOVAL/INSTALLATION

1. Press the stay damper in the direction shown by the arrow and detach it from the glove compartment lid.






2. Bend the stoppers inward to remove.

3. Turn the glove compartment downward and pull the pins.

4. Remove the glove compartment.

5. Install in the reverse order of removal.
