Console Panel Removal/Installation

CONSOLE PANEL REMOVAL/INSTALLATION

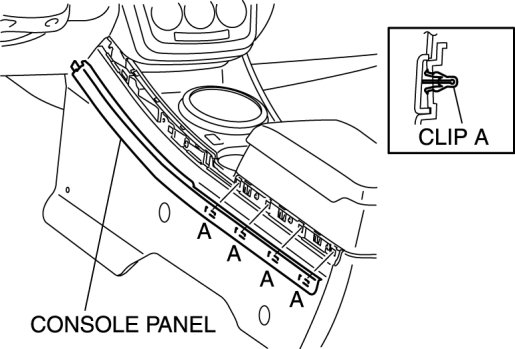

1. Remove clips A in order starting from the vehicle rear using a tape-wrapped flathead screwdriver.

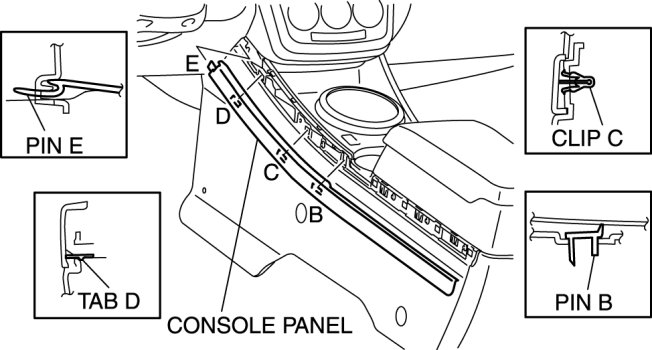

2. Remove the parts in the order of pin B, clip C and tab D from the vehicle rear.






3. Remove the pin E.

4. Remove the console panel.

5. Install in the reverse order of removal.
