Blind Spot Switch: Service and Repair

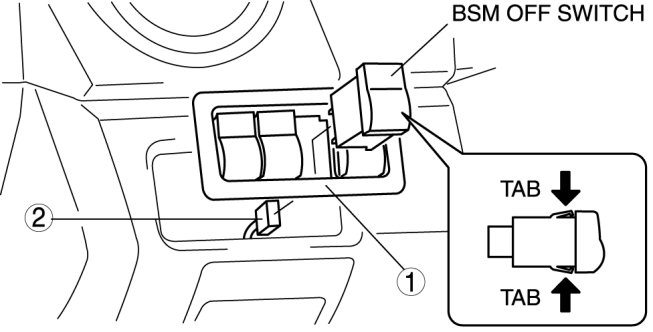

BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:






a. Switch bezel component.

b. Connector

3. Remove the BSM OFF switch.

4. Install in the reverse order of removal.

Switch Bezel Component Removal Note

1. Access the switch bezel component from behind of the dashboard, and squeeze the tabs of the switch bezel component.

2. Remove the switch bezel component from the dashboard.
