No. 2 BSM OFF Indicator Light Does Not Illuminate While BSM System Is OFF





NO.2 BSM OFF INDICATOR LIGHT DOES NOT ILLUMINATE WHILE BSM SYSTEM IS OFF [BLIND SPOT MONITORING (BSM)]

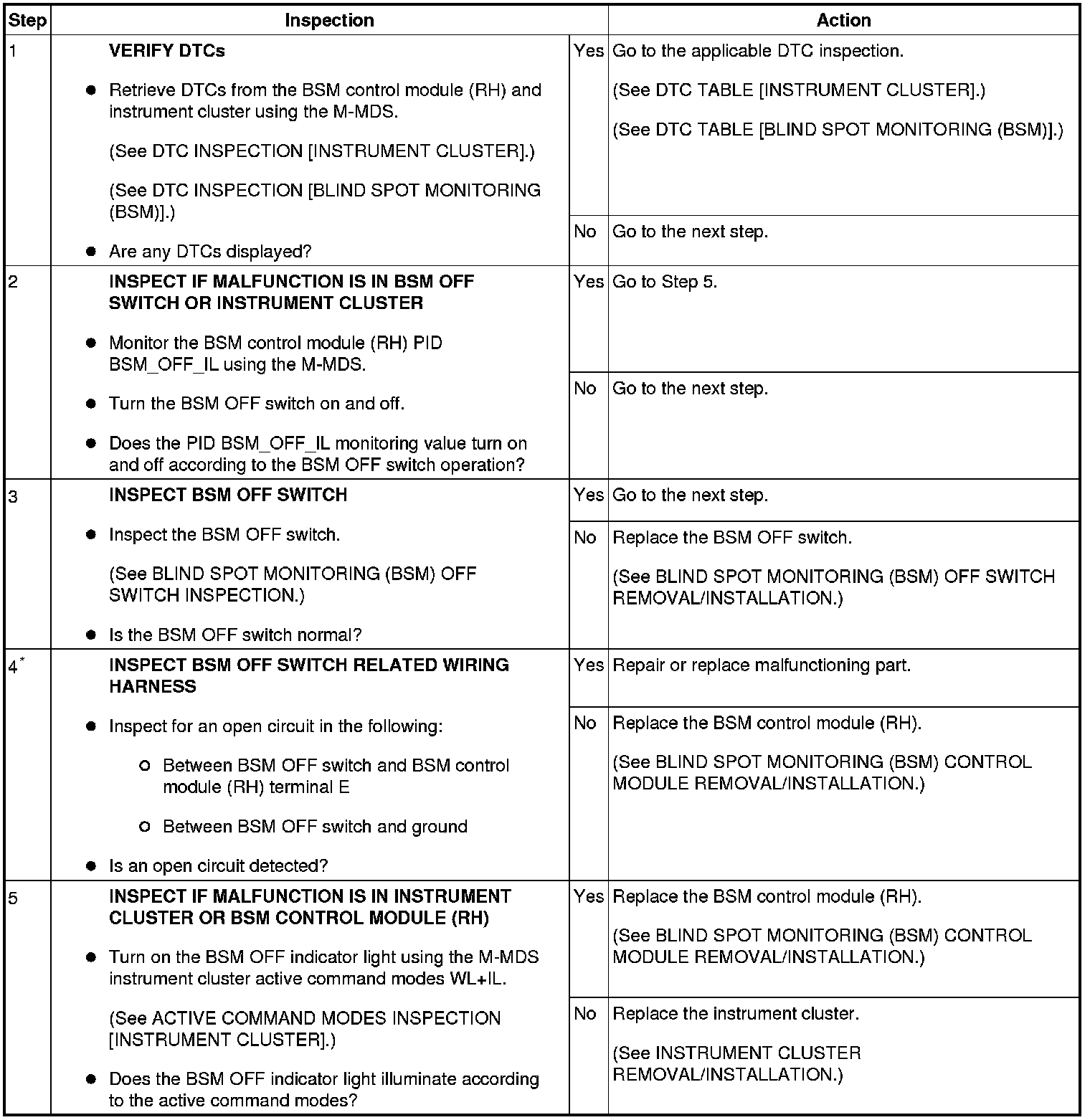

Diagnostic Procedure
