Electrical Diagrams

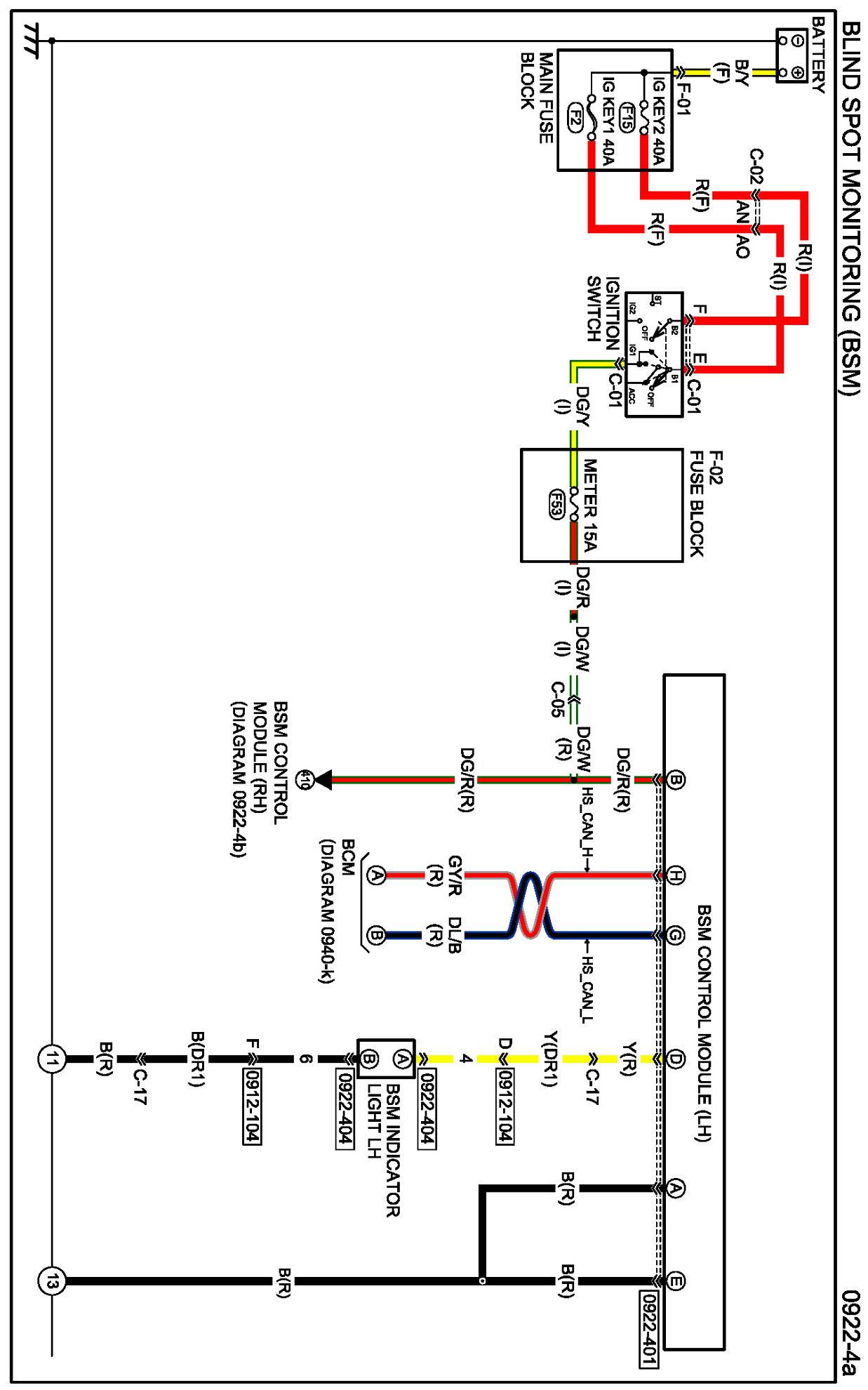

Diagram 0922-4a:

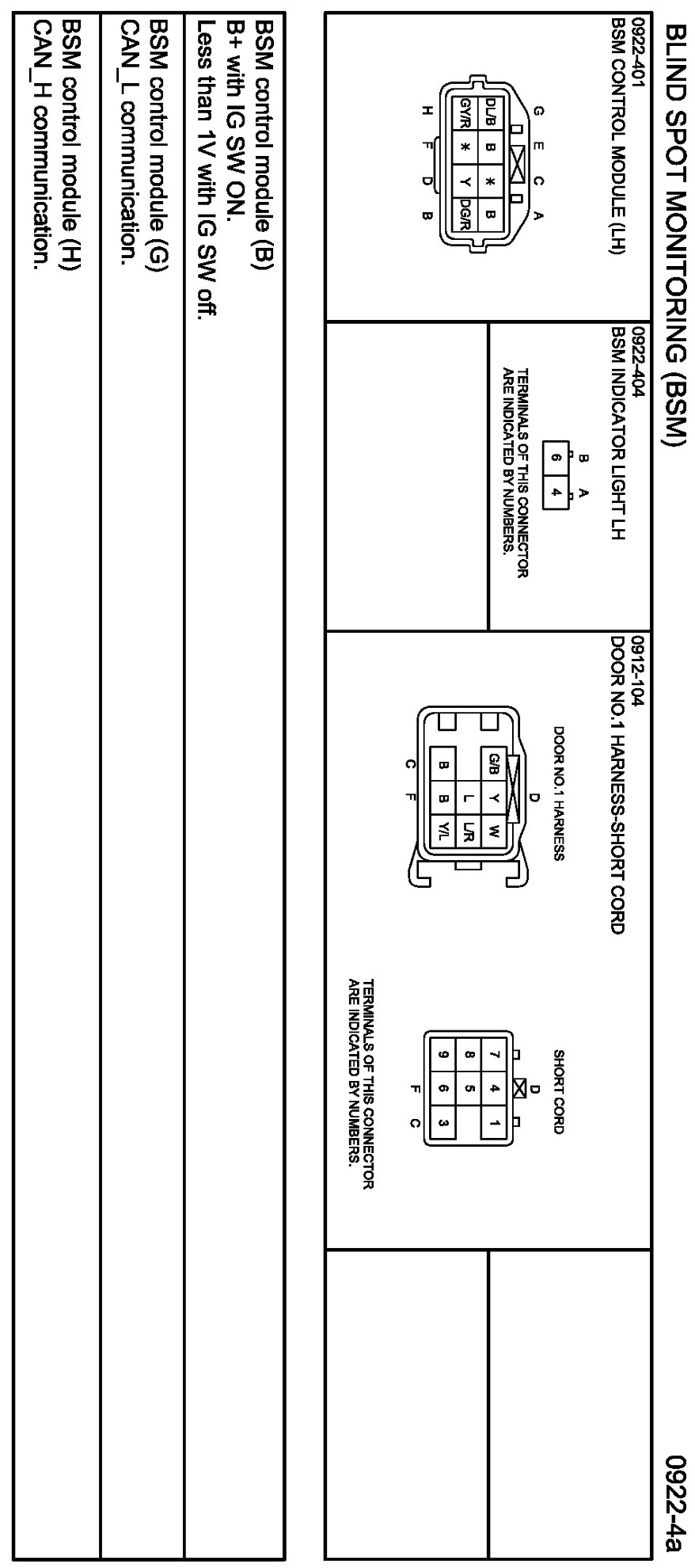

Connectors 0922-4a:

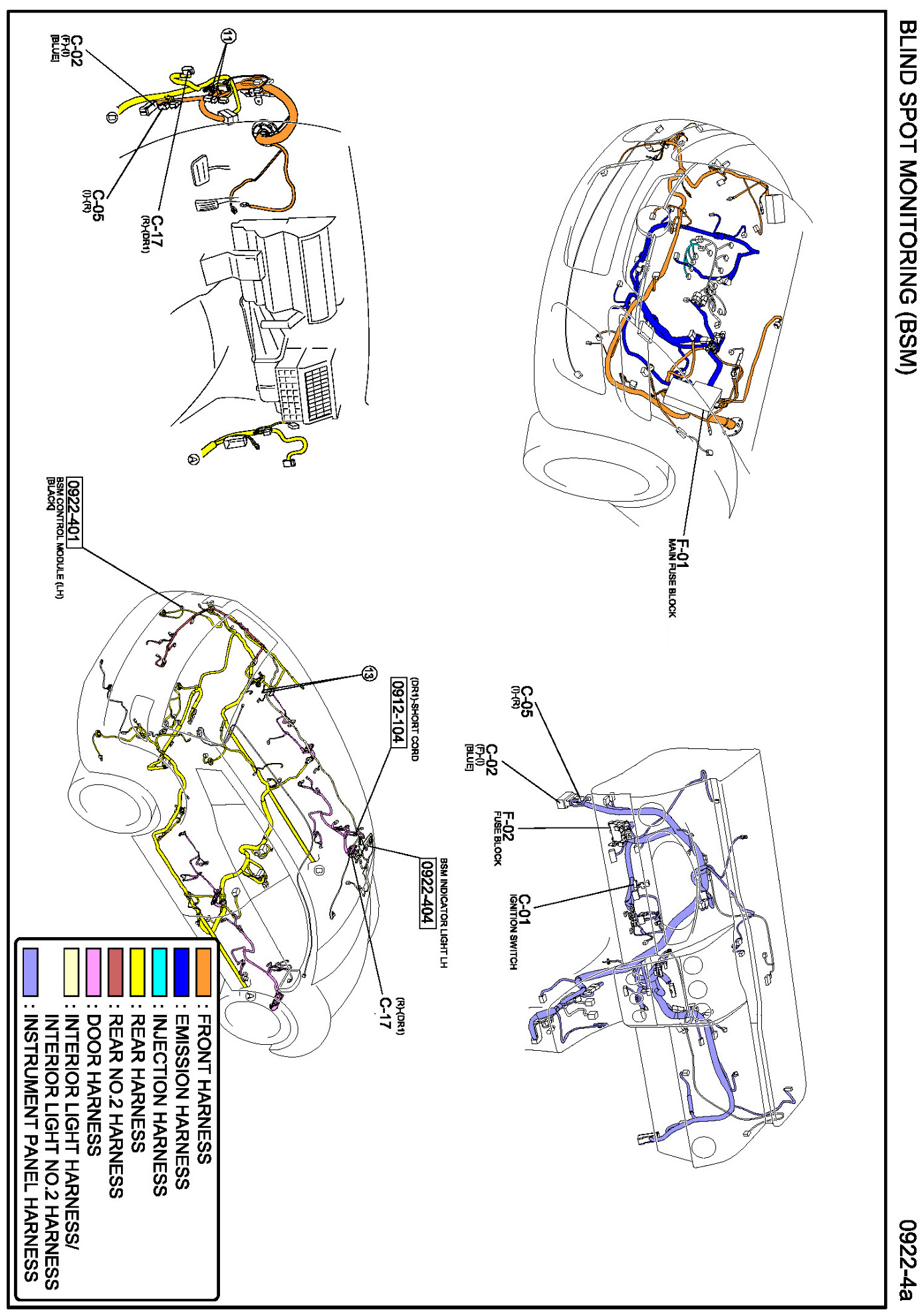

Routing View 0922-4a:

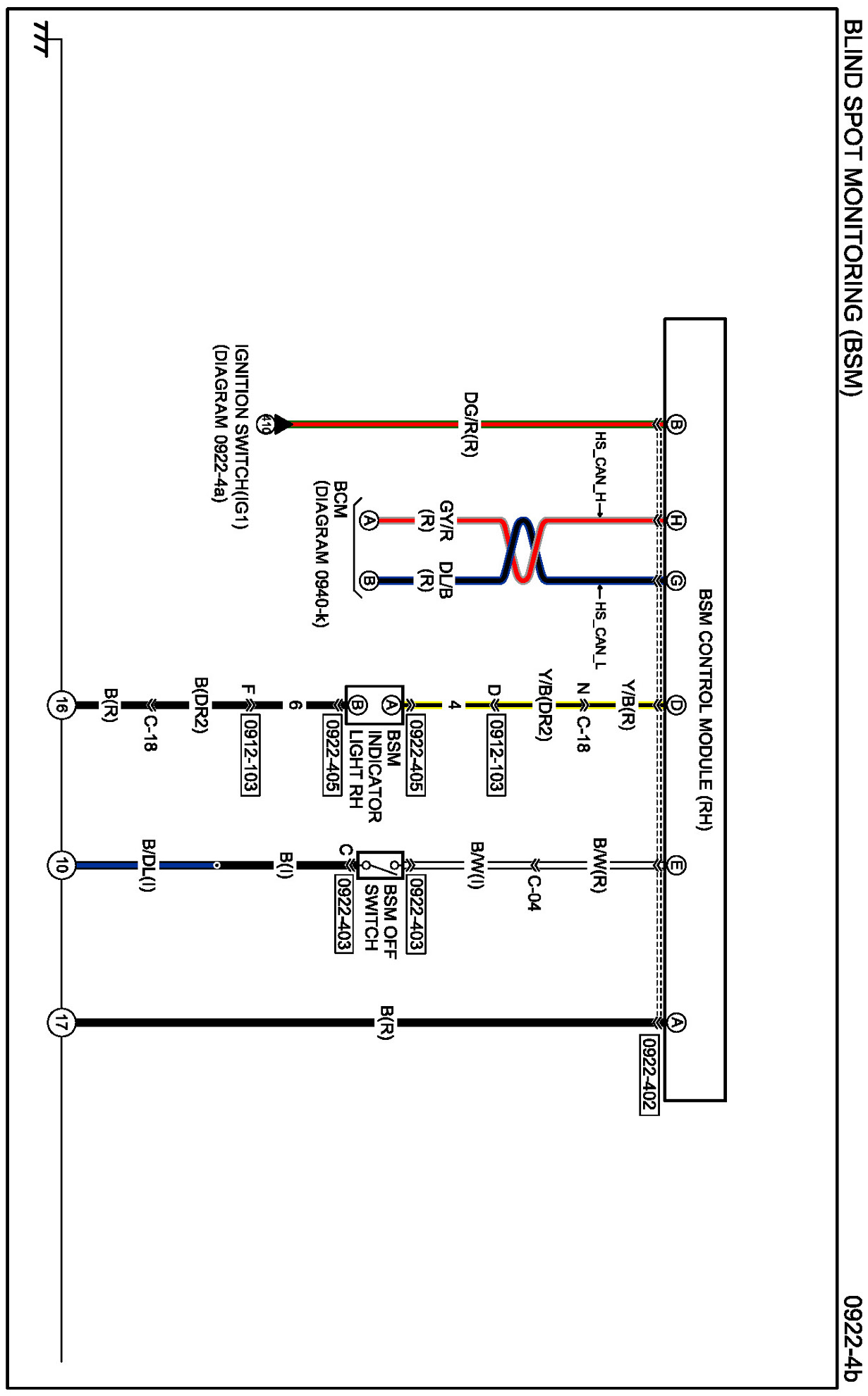

Diagram 0922-4b:

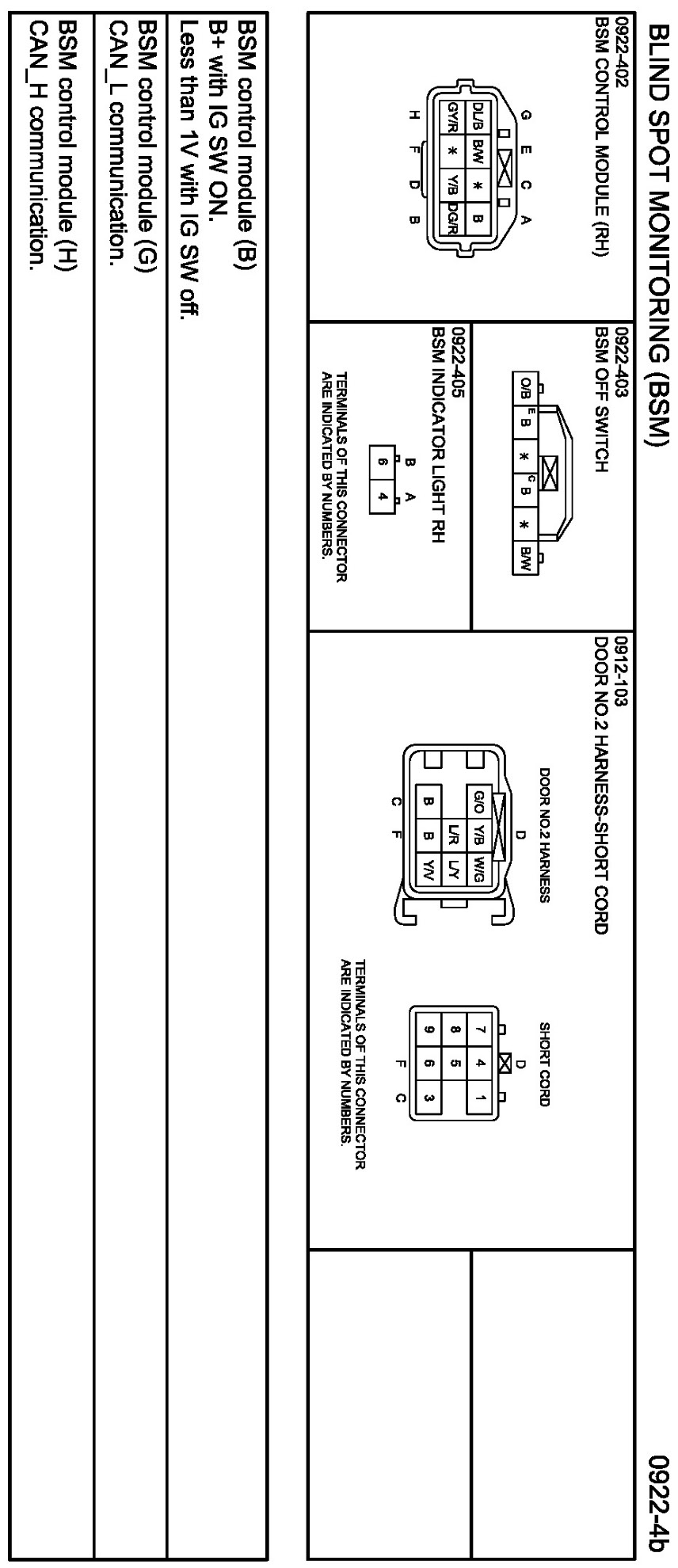

Connectors 0922-4b:

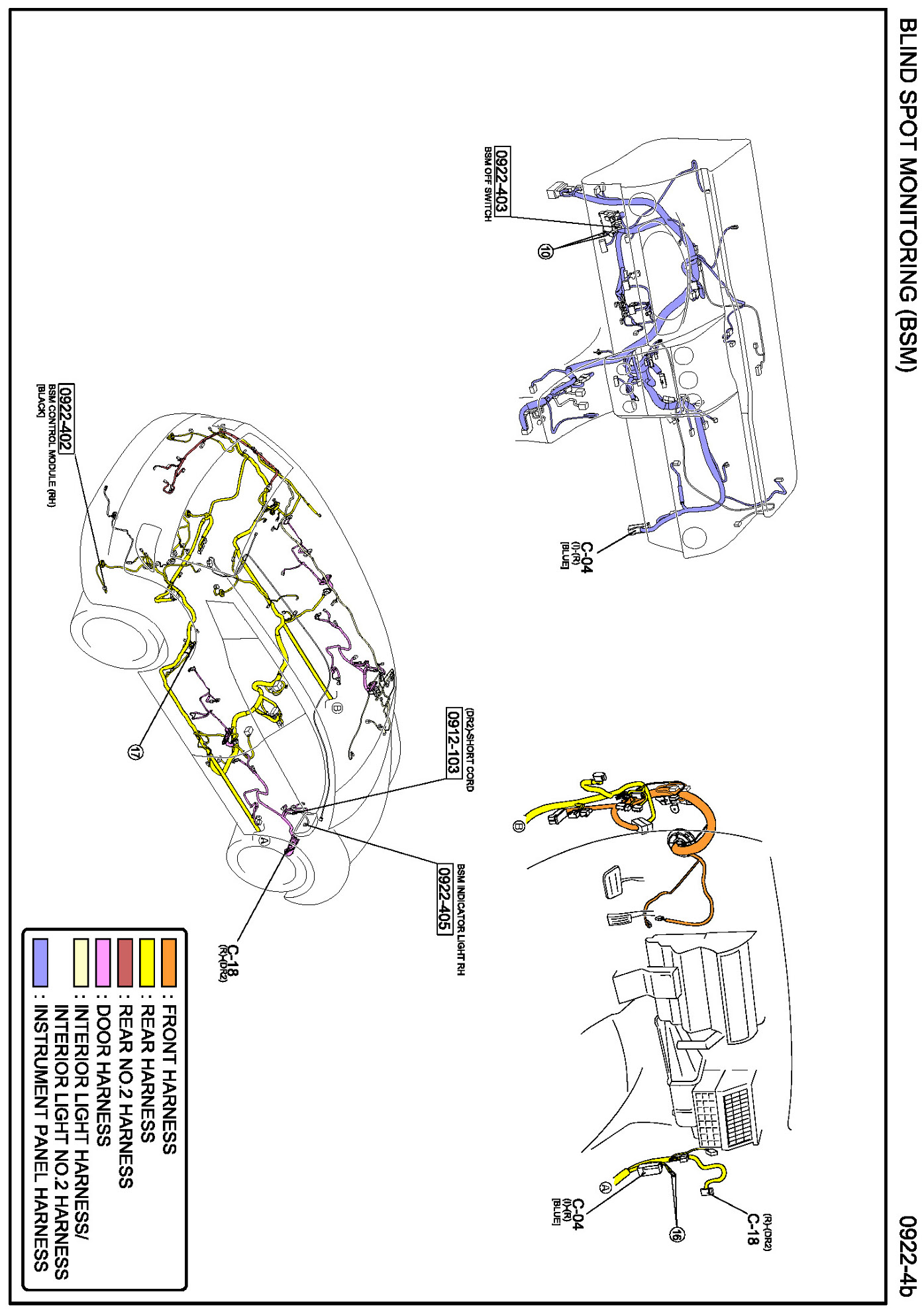

Routing View 0922-4b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
