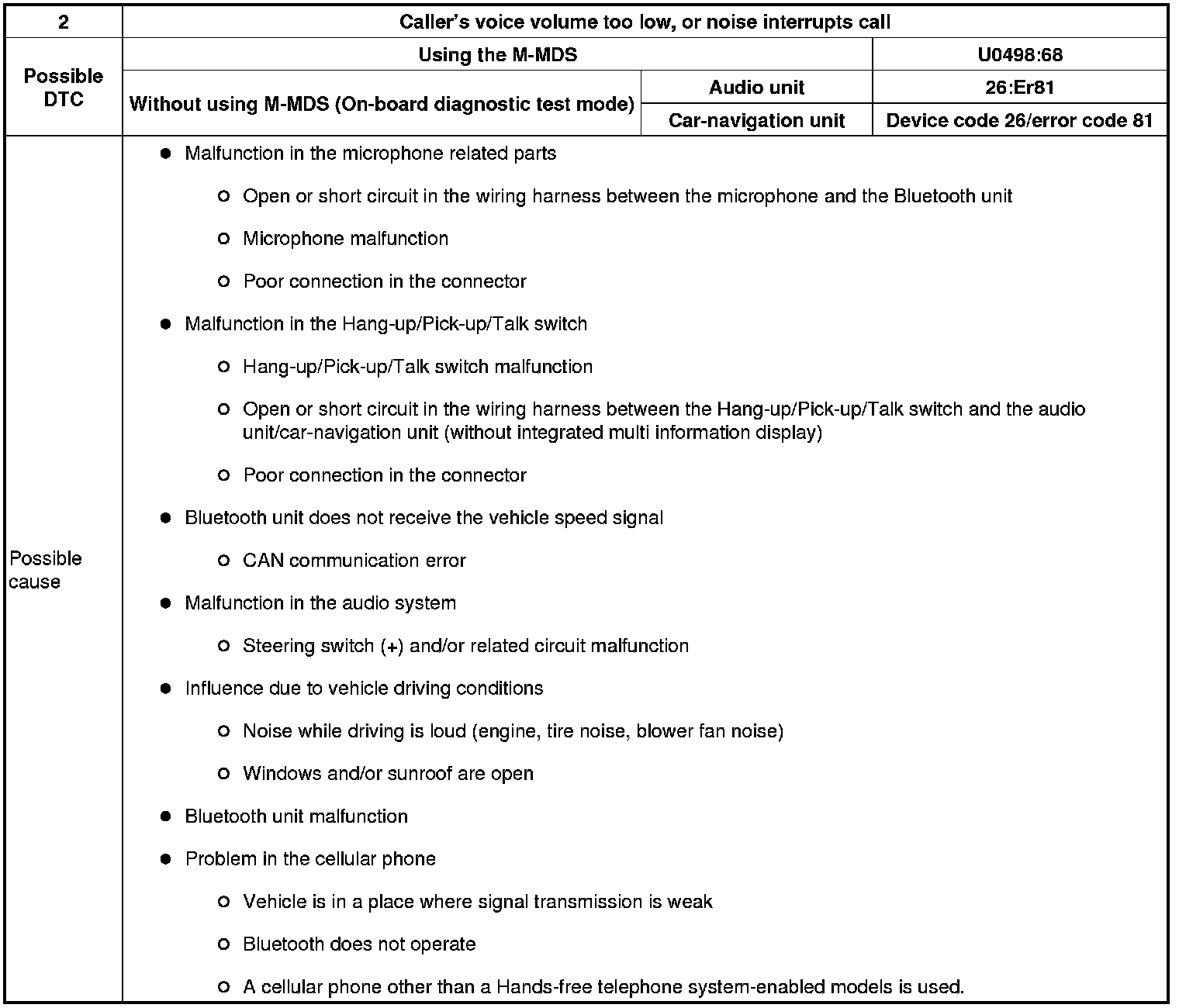

No. 2 Caller's Voice Volume Too Low, Or Noise Interrupts Call

No.2 CALLER'S VOICE VOLUME TOO LOW, OR NOISE INTERRUPTS CALL [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

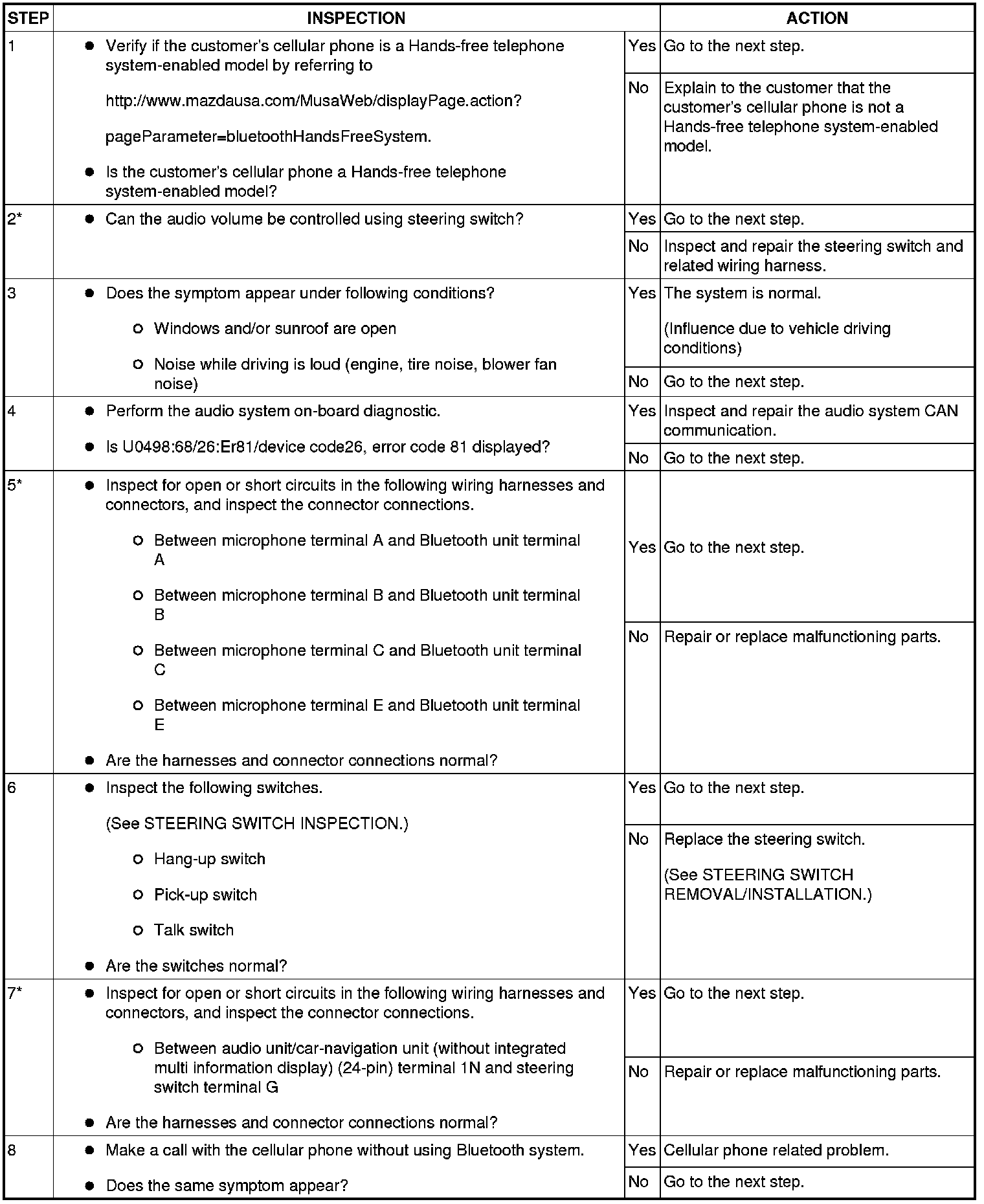

Diagnostic procedure

- When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, verify that the connectors, terminals and wiring harness are connected correctly and undamaged.
