Antenna Feeder No. 3 Inspection

ANTENNA FEEDER NO.3 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear scuff plate inner Rear Scuff Plate Removal/Installation

b. Rear seat Rear Seat Removal/Installation

c. Sub trunk box Sub Trunk Box Removal/Installation

d. Trunk end trim Trunk End Trim Removal/Installation

e. Trunk side trim

f. C-pillar trim C-Pillar Trim Removal/Installation

g. D-pillar trim D-Pillar Trim Removal/Installation

h. Assist handle Service and Repair

3. Partially peel back the headliner.

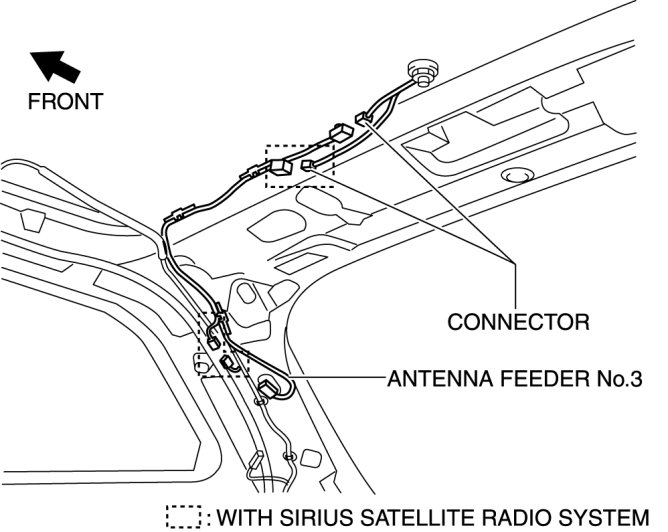

4. Disconnect the connector.

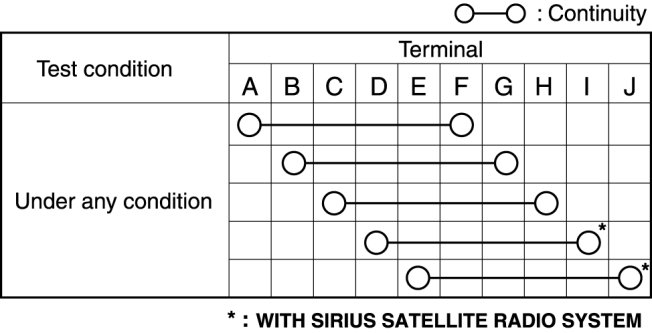

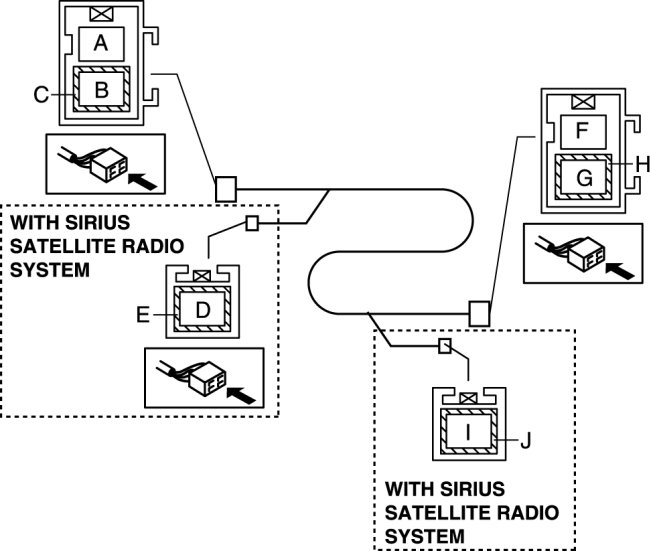

5. Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.3.
