Antenna Feeder No. 2 Inspection

ANTENNA FEEDER NO.2 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. A-pillar lower trim (RH) A-Pillar Lower Trim Removal/Installation

b. A-pillar trim (RH) A-Pillar Trim Removal/Installation

c. Rear scuff plate inner (RH) Rear Scuff Plate Removal/Installation

d. Rear seat Rear Seat Removal/Installation

e. Sub trunk box Sub Trunk Box Removal/Installation

f. Trunk end trim Trunk End Trim Removal/Installation

g. Trunk side trim (RH)

h. D-pillar trim (RH) D-Pillar Trim Removal/Installation

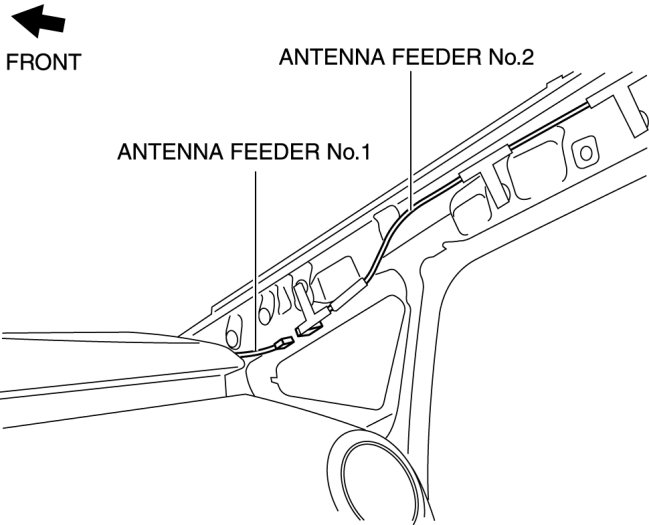

3. Disconnect the antenna feeder No.1.

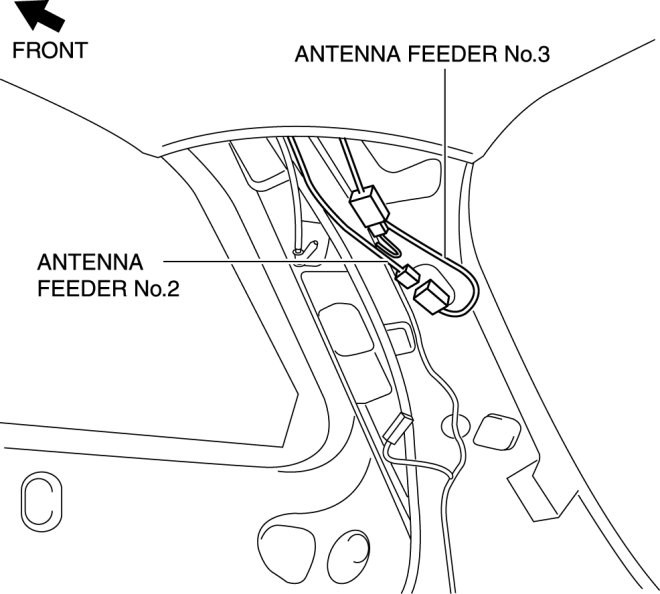

4. Disconnect the antenna feeder No.3.

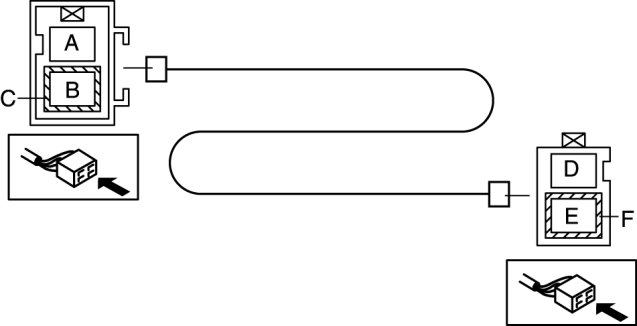

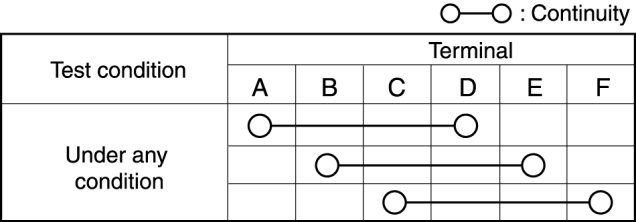

5. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.2.
