Antenna Feeder No. 1 Inspection

ANTENNA FEEDER NO.1 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Detraction panel Decoration Panel Removal/Installation

b. Center panel Center Panel Removal/Installation

c. Audio unit (with audio system) Audio Unit Removal/Installation

d. Car-navigation unit (without integrated multi information display) Service and Repair

e. A-pillar lower trim (RH) A-Pillar Lower Trim Removal/Installation

f. A-pillar trim (RH) A-Pillar Trim Removal/Installation

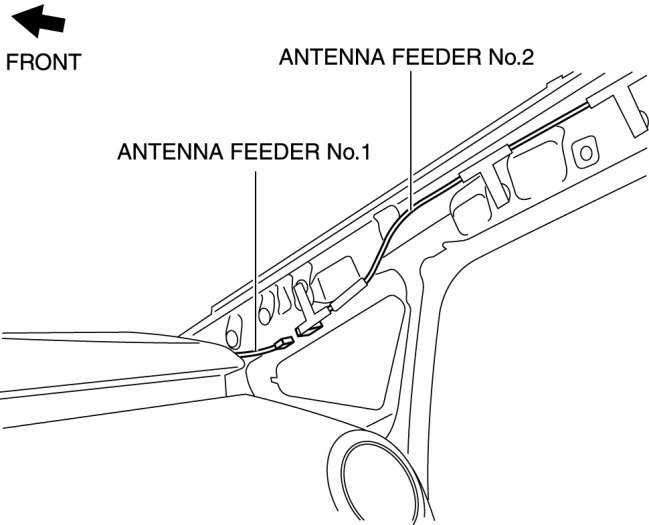

3. Disconnect the antenna feeder No.2.

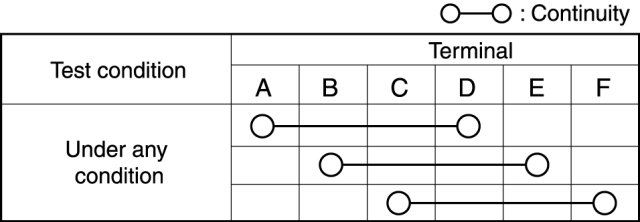

4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

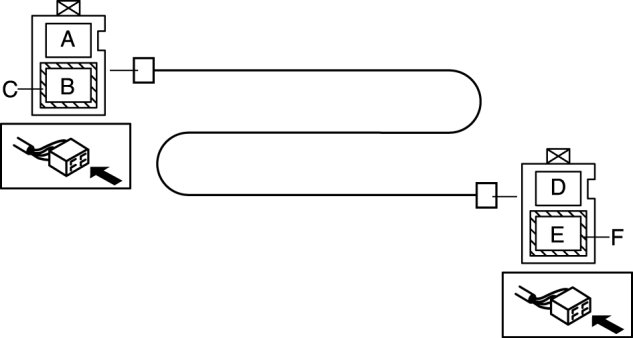

With audio unit

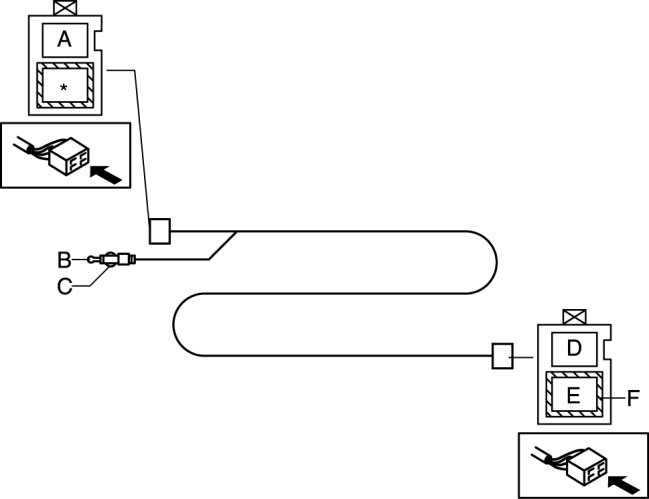

With car-navigation unit (without integrated multi information display)






- If not as indicated in the table, replace antenna feeder No.1.
