Antenna Feeder No. 1 Removal/Installation

ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Detraction panel Decoration Panel Removal/Installation

b. Center panel Center Panel Removal/Installation

c. Audio unit (with audio system) Audio Unit Removal/Installation

d. Car-navigation unit (without integrated multi information display) Service and Repair

e. Glove compartment Service and Repair

f. A-pillar lower trim (RH) A-Pillar Lower Trim Removal/Installation

g. A-pillar trim (RH) A-Pillar Trim Removal/Installation

3. Disconnect the antenna feeder No.2. Antenna Feeder No. 2 Removal/Installation

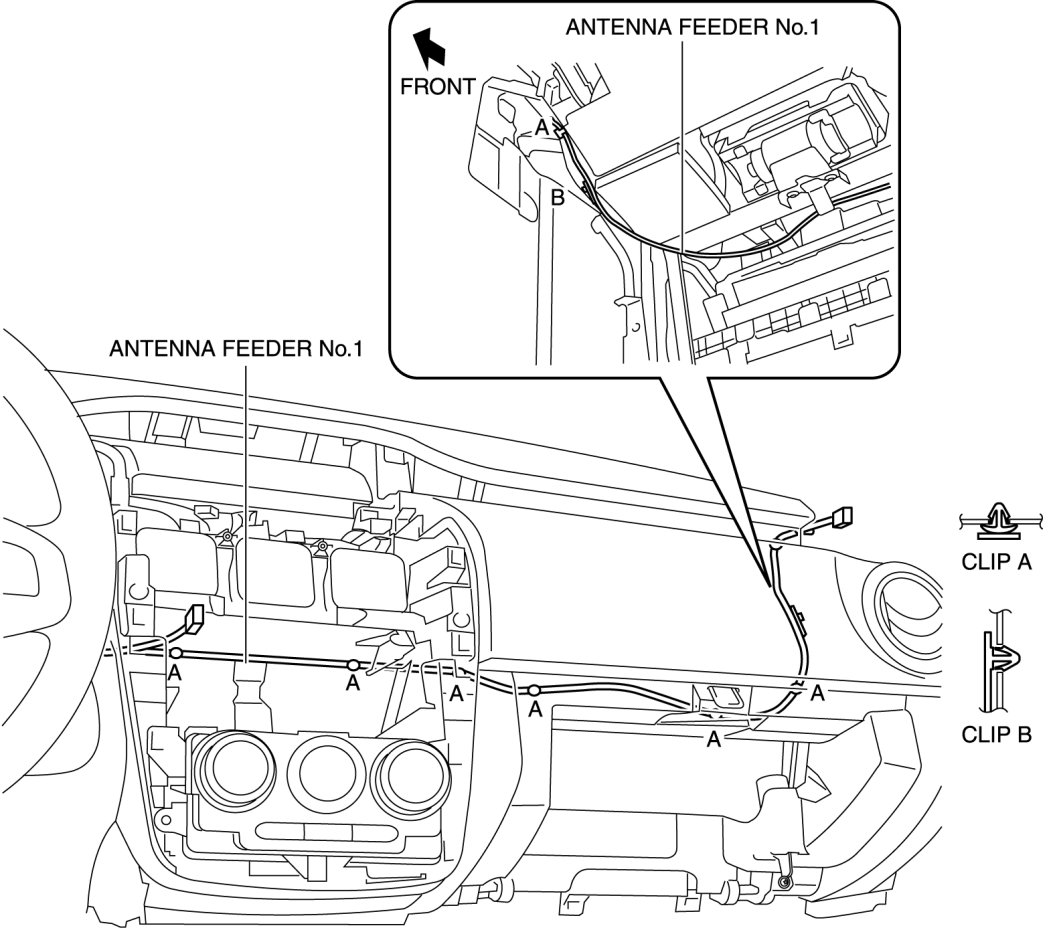

4. Remove the clips A and B.

5. Remove the antenna feeder No.1.

6. Install in the reverse order of removal.
