Antenna Cable: Locations

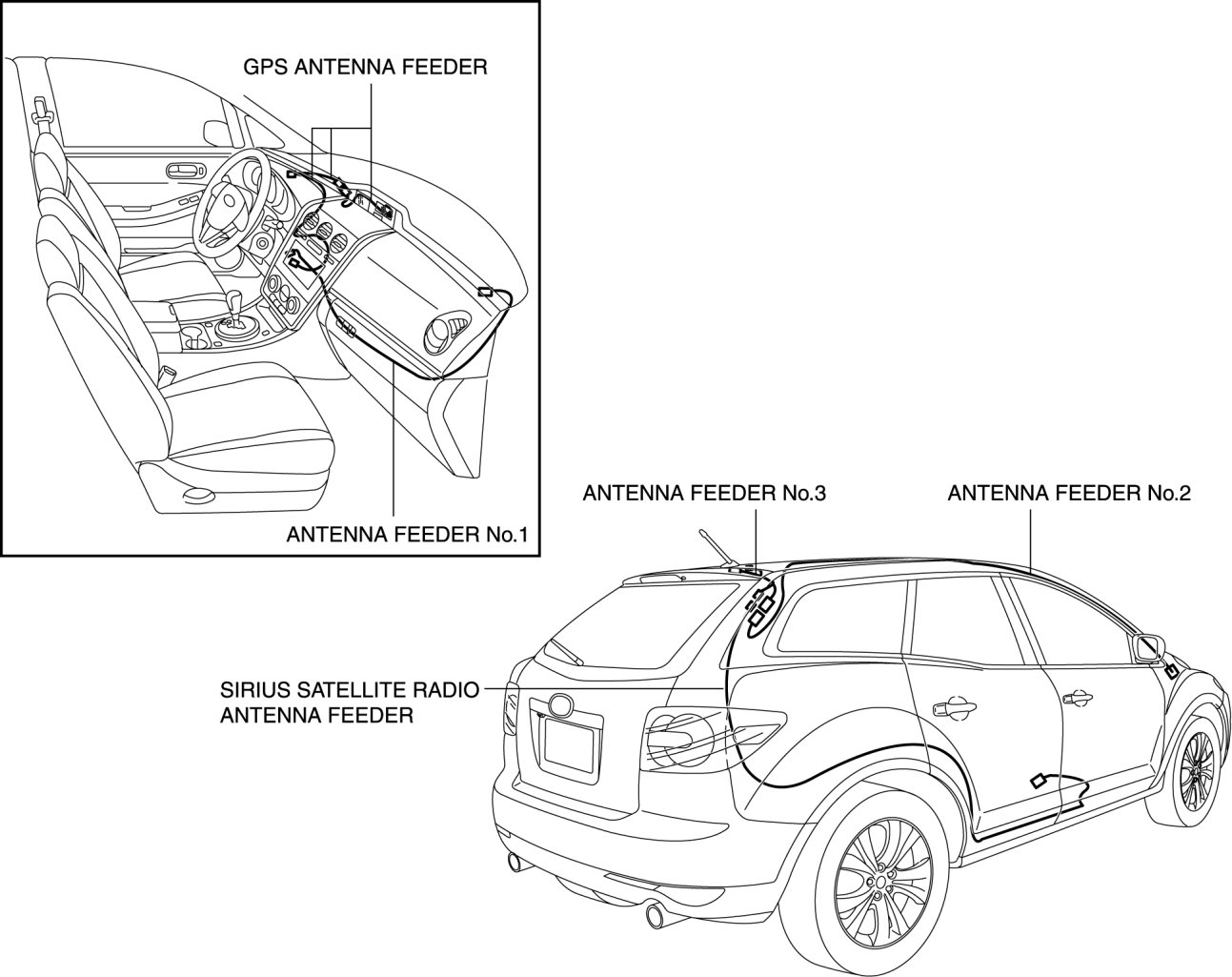

ANTENNA FEEDER LOCATION

NOTE:
- The GPS antenna feeder is integrated with the dashboard wiring harness.
- The SIRIUS satellite radio antenna feeder is integrated with the rear wiring harness.
