Ambient Temperature Sensor Removal/Installation [Full-Auto Air Conditioner]

  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove in the order indicated in the table.

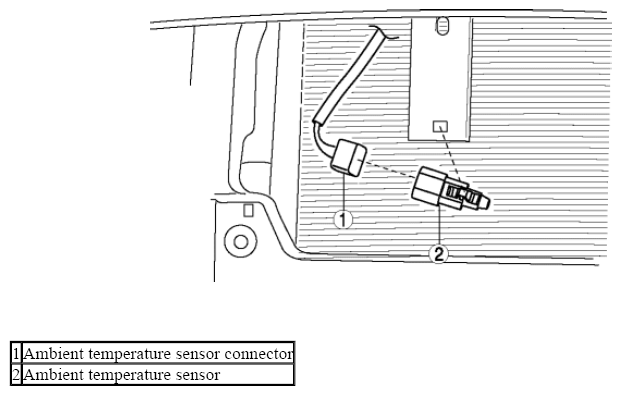

    Fig 1: Identifying Ambient Temperature Sensor And Connector
    G08143642
  4. Install in the reverse order of removal.
