DTC Inspection [Instrument Cluster]

Connect the M-MDS (IDS) to the DLC-2.

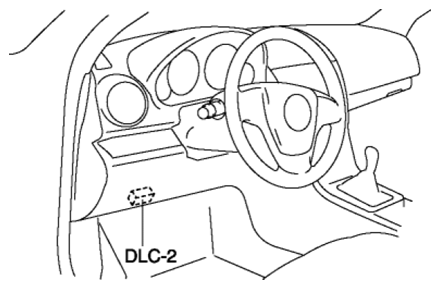

Fig 1: Identifying DLC-2 Location
After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select "Self Test".
- Select "Modules".
- Select "IC".

Verify the DTC according to the directions on the screen.

If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

Snapshot data table

NOTE:

Snapshot data items are not displayed, according to detected DTC.

Snapshot data item	Data contents	Unit	Display content
TOTAL_DIST	Odometer reading when DTC detected	km	Odometer reading when DTC detected (four-digit number indicated)

After completion of repairs, clear all DTCs stored in the instrument cluster. (See CLEARING DTC [INSTRUMENT CLUSTER] .)
