Parking Brake Switch Inspection

Disconnect the parking brake switch connector.
Verify that the continuity is as indicated in the table.

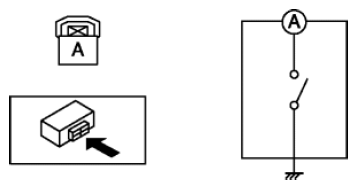

Fig 1: Identifying Parking Brake Switch Terminal
- If not as indicated in the table, replace the parking brake lever.

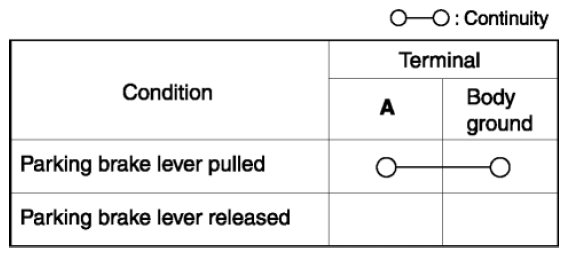

  Fig 2: Parking Brake Switch Terminal And Body Ground Continuity Chart
