Parking Brake Lever Removal/Installation

Remove the following parts:
1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
2. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION .)

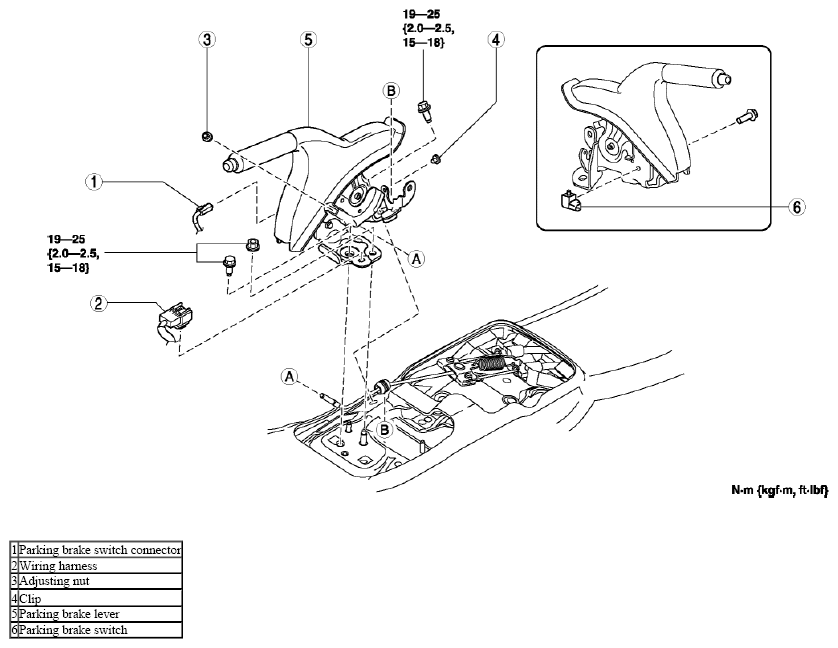

Fig 1: Parking Brake Lever Replacement Components With Torque Specifications
