Brake Fluid Level Sensor Inspection

  1. Disconnect the negative battery cable.
  2. Disconnect the sensor connector.
  3. Inspect for continuity between terminals of fluid level sensor.
    • If not as specified, replace the fluid level sensor.

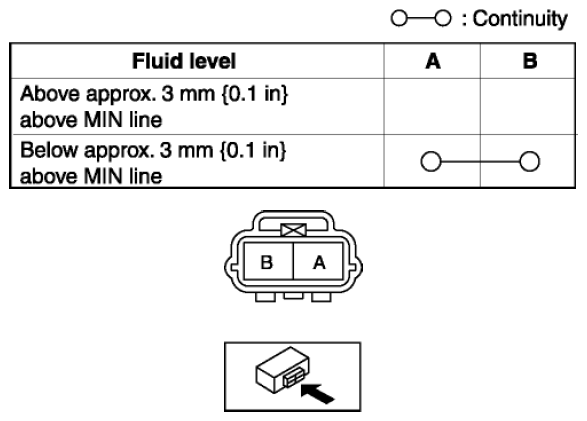

      Fig 1: Fluid Level Sensor Terminals Continuity Chart
      G08142485
