Symptom Troubleshooting [Instrument Cluster (With Malfunction Warning Light)]
>>
Quick Diagnostic Chart [Instrument Cluster (With Malfunction Warning Light)]
Quick Diagnostic Chart [Instrument Cluster (With Malfunction Warning Light)]

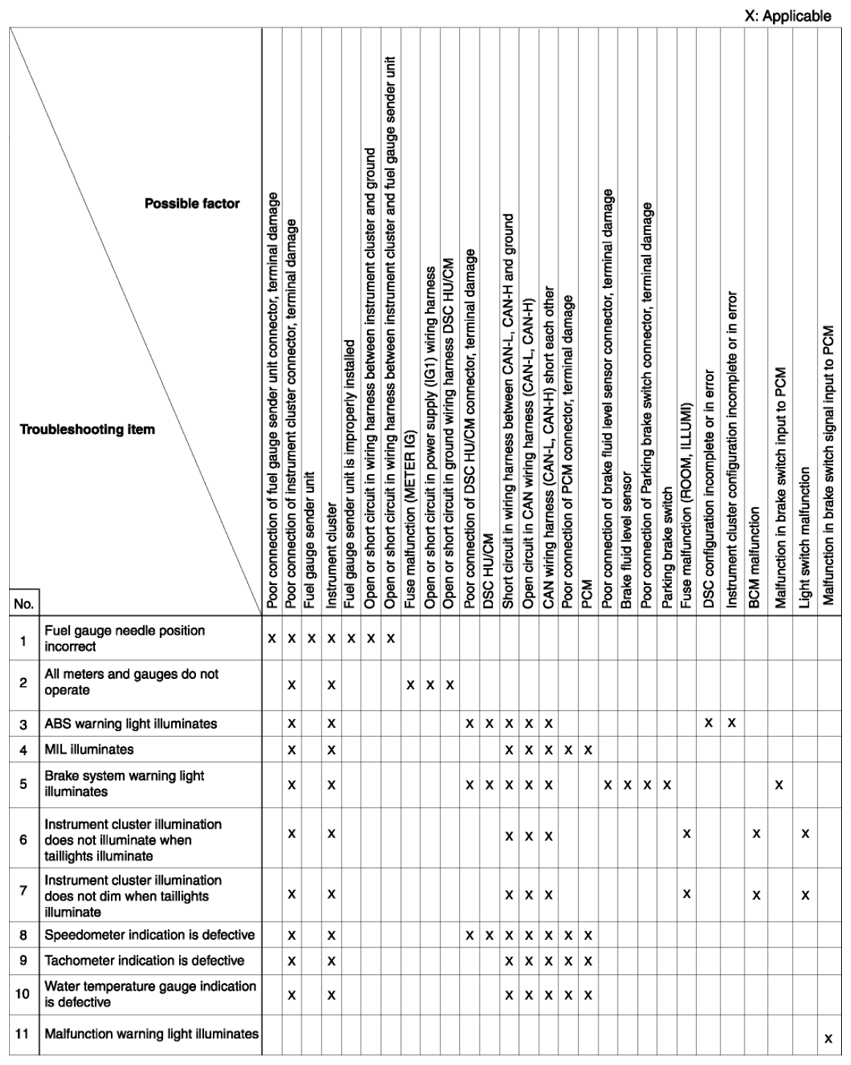

Fig 1: Quick Diagnostic Chart - Instrument Cluster (With Malfunction Warning Light)
