Mazda
>>
2012
>>
6 s Touring Plus
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
On-Board Diagnostic [Instrument Cluster]
>>
On-Board Diagnostic Wiring Diagram [Instrument Cluster]
On-Board Diagnostic Wiring Diagram [Instrument Cluster]

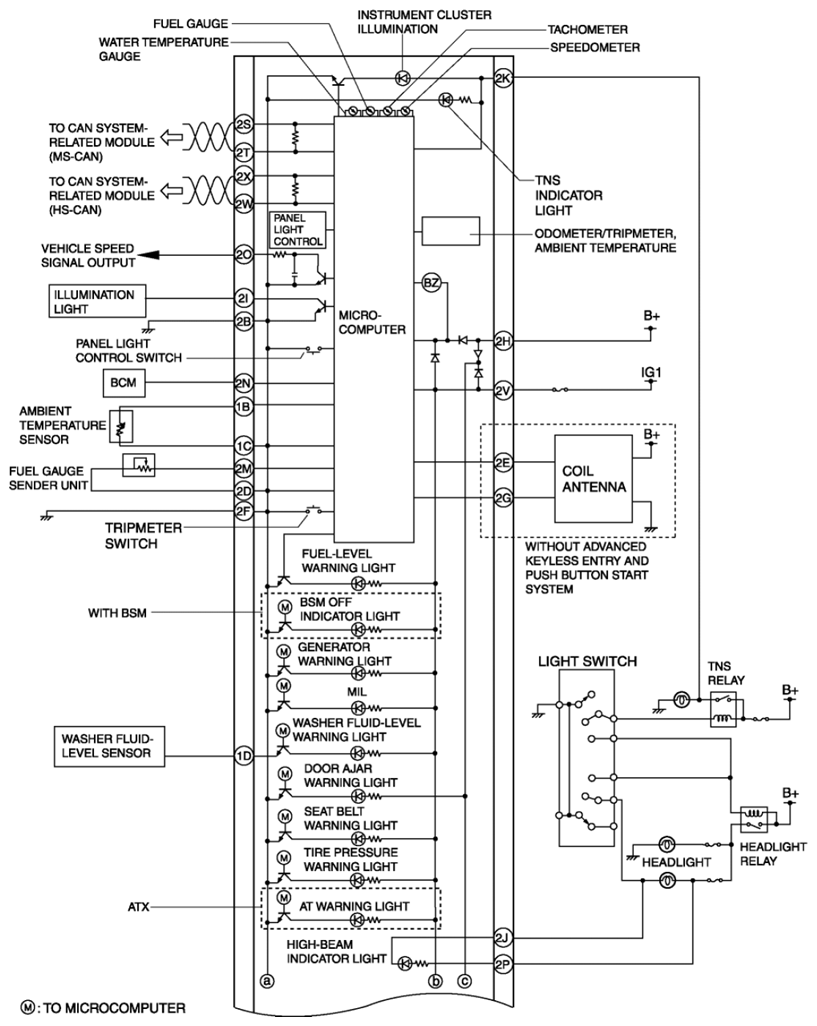

Fig 1: On-Board Diagnostic Wiring Diagram [Instrument Cluster] (1 Of 2)

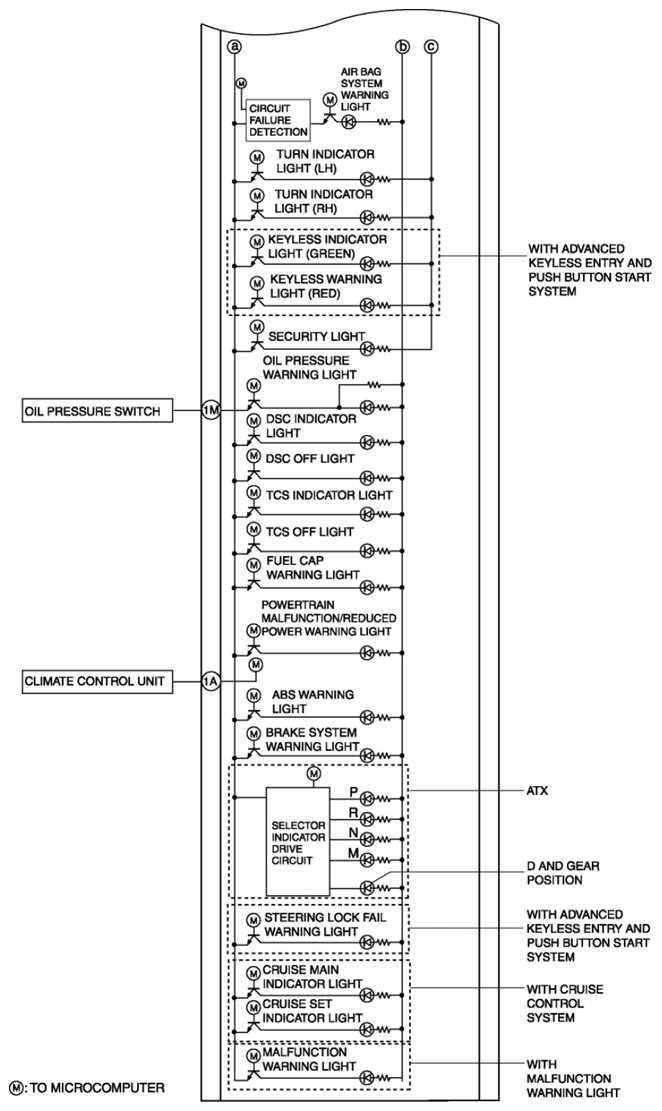

Fig 2: On-Board Diagnostic Wiring Diagram [Instrument Cluster] (2 Of 2)
