| DESCRIPTION |
Instrument cluster power supply voltage is low |
| DETECTION CONDITION |
Instrument cluster power supply voltage less than 10 V |
| POSSIBLE CAUSE |
- Fuse malfunction
- Battery malfunction
- Generator malfunction
- Connector or terminal malfunction
- Ignition switch malfunction

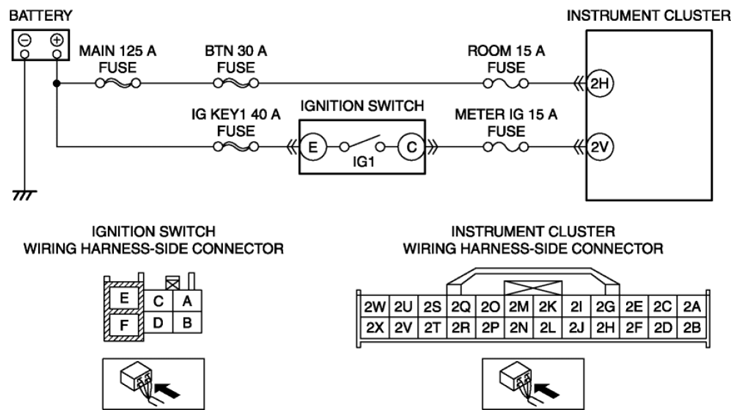

- Open circuit in the wiring harness between battery positive terminal and instrument cluster terminal 2H
- Open circuit in the wiring harness between battery positive terminal and ignition switch terminal E
- Short to ground in the wiring harness between battery positive terminal and instrument cluster terminal 2H
- Short to ground in the wiring harness between battery positive terminal and ignition switch terminal E
- Short to ground in the wiring harness between ignition switch terminal C and instrument cluster terminal 2V
- Open circuit in the wiring harness between ignition switch terminal C and instrument cluster terminal 2V
- Instrument cluster malfunction
|
|
|
