Evaporator Temperature Sensor Inspection [Full-Auto Air Conditioner]

  1. Set the fan speed MAX HI.
  2. Set the temperature control at MAX COLD (Turn the left).
  3. Turn the A/C switch off.
  4. Set the RECIRCULATE mode.
  5. Close all doors and windows.
  6. Wait for 5 min.
  7. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  8. Disconnect the evaporator temperature sensor connector. (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
  9. Measure the temperature at the blower inlet.
  10. Measure the resistance between terminals of the evaporator temperature sensor.

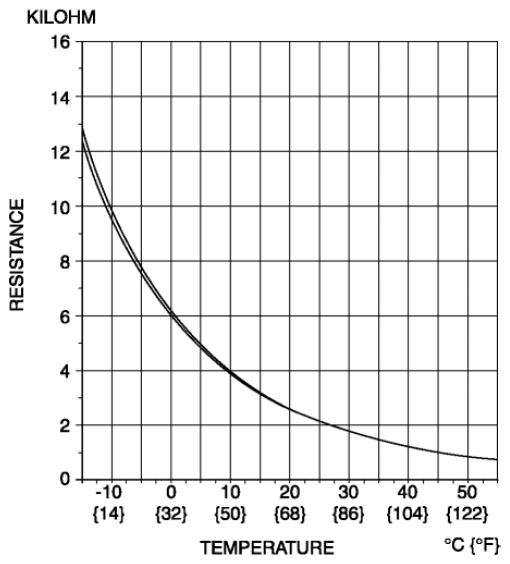

    Fig 1: Evaporator Temperature Sensor Resistance Graph
    G08143646
    • If the resistance is not as shown in the graph, replace the evaporator temperature sensor.
