Section 8 (Fuel System [MZI 3.7 V6])
>>
Fuel System Diagram
Fuel System Diagram
WARNING:
This page is about a different variant/trim than selected.

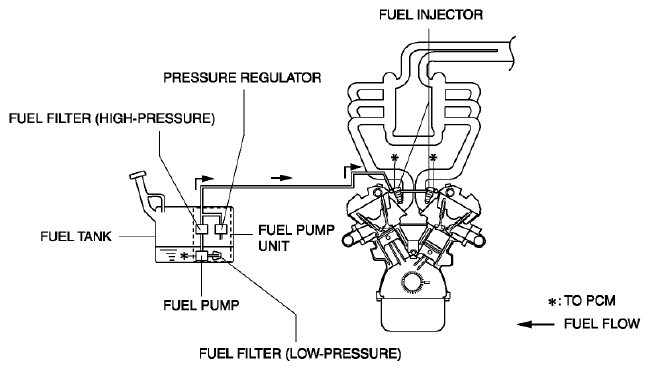

Fig 1: Fuel System Diagram [MZI 3.7 V6]
