Set Plate Removal Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The set plate could be damaged if the SST is used with any play between the set plate and the SST. Securely attach the SST so that there is no gap between the SST tabs and the set plate.
  1. Install the SST  shown in the figure.

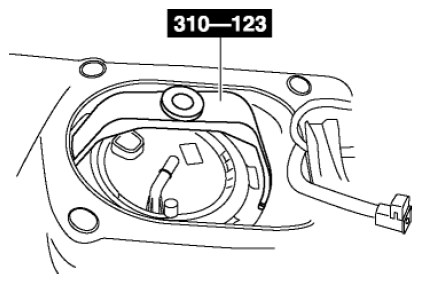

    Fig 1: Identifying SST 310-123 Set Plate Removal Tool
    G08140564
  2. Remove the set plate using the SST  .
