Fuel Pump Unit Disassembly/Assembly
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)

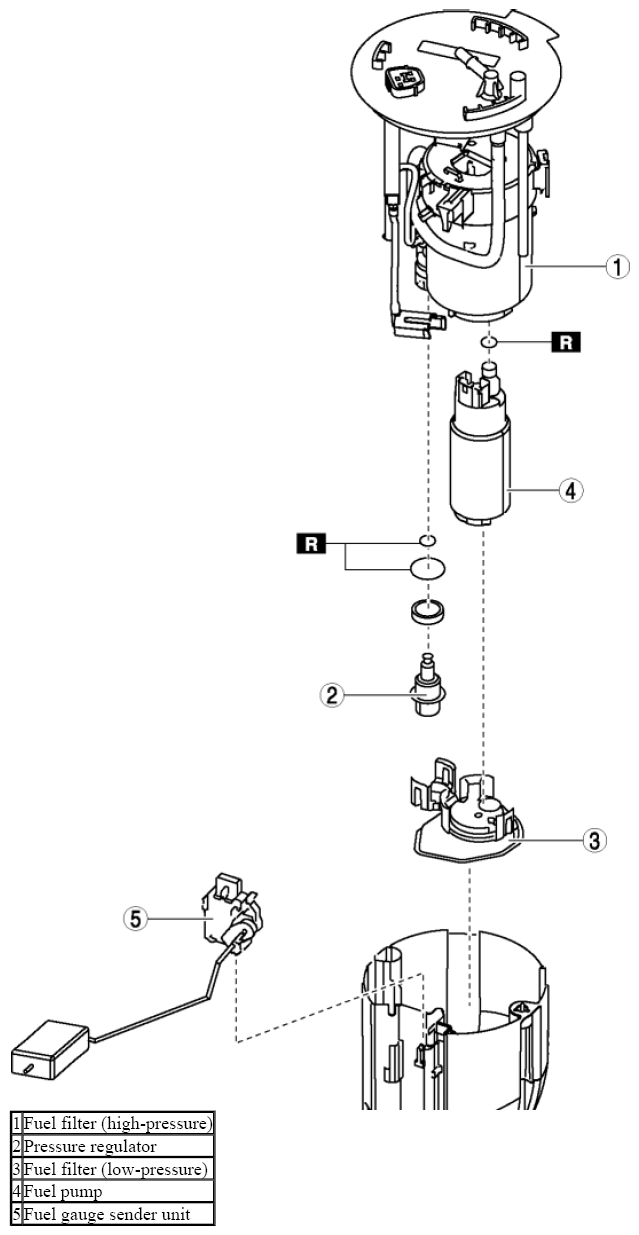

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
