Section 7 (Symptom Troubleshooting [Engine Control System - MZI 3.7 V6])
>>
Symptom Troubleshooting Wiring Diagram
Symptom Troubleshooting Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

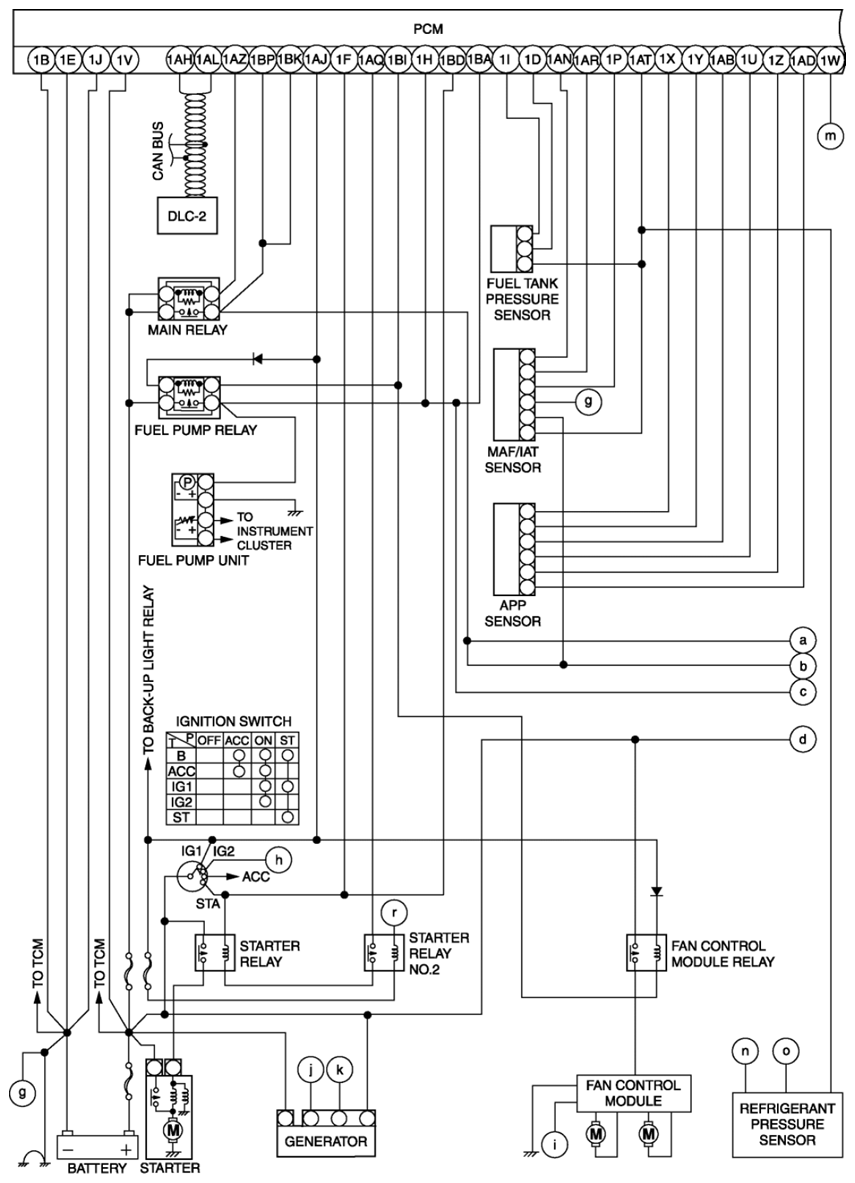

Fig 1: Symptom Troubleshooting Wiring Diagram (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

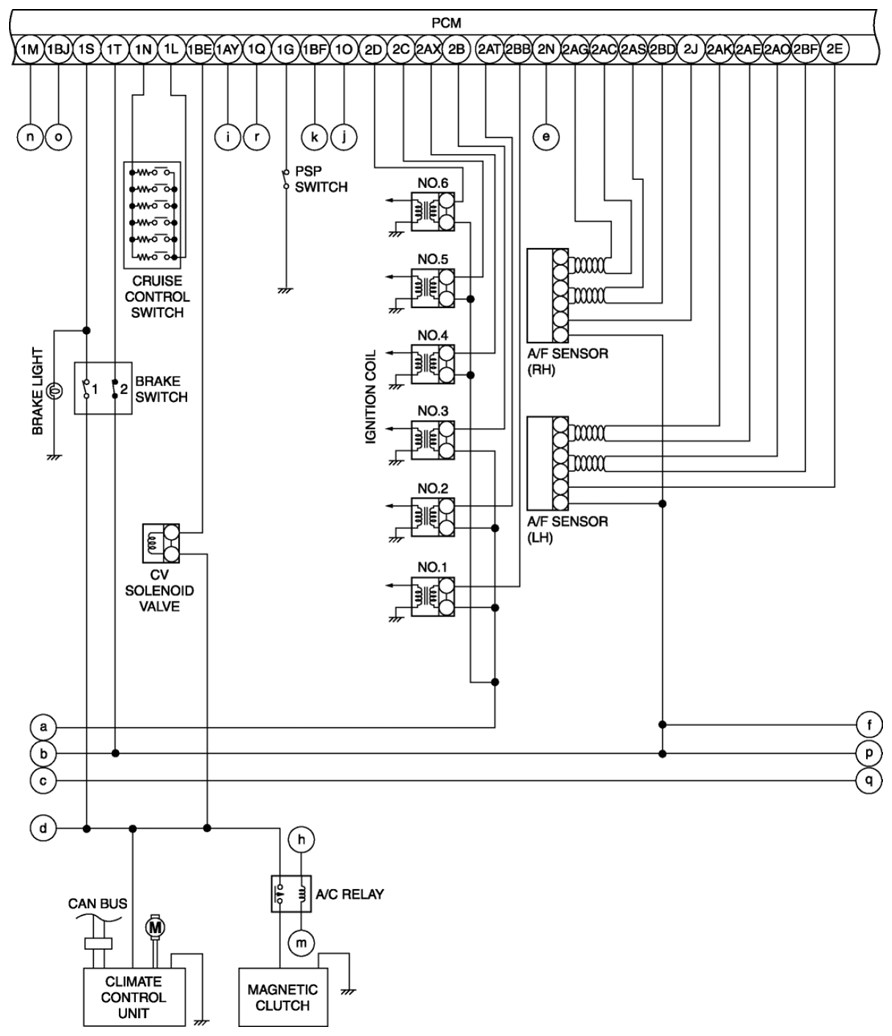

Fig 2: Symptom Troubleshooting Wiring Diagram (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

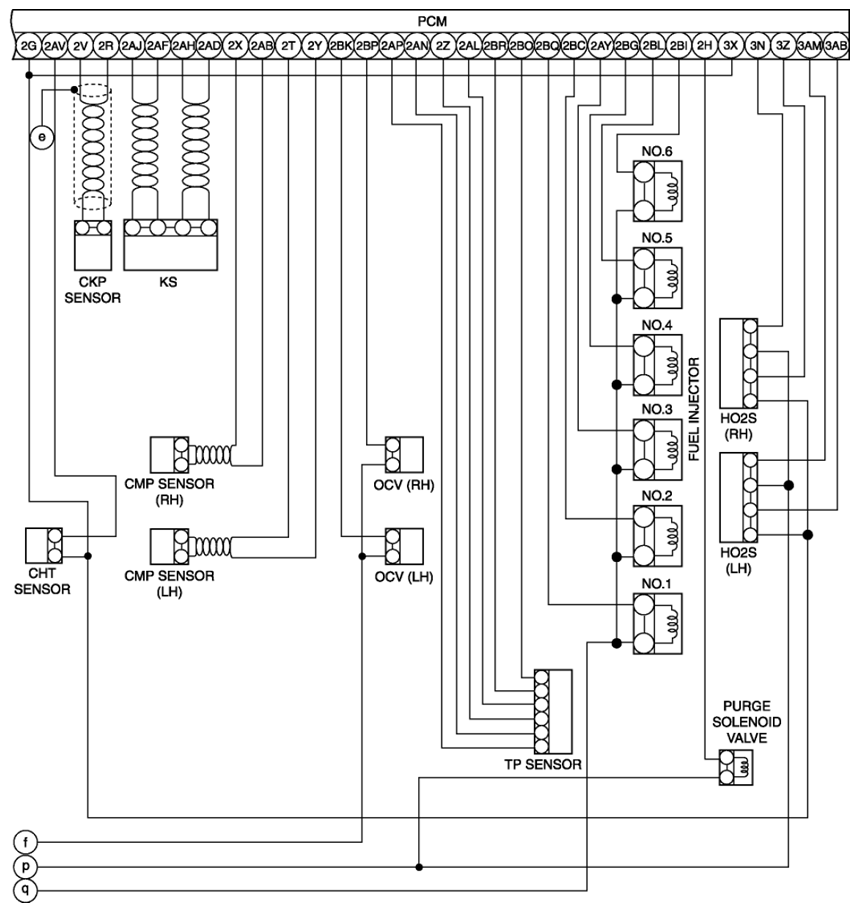

Fig 3: Symptom Troubleshooting Wiring Diagram (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
