No. 3 Will Not Crank: Notes
WARNING: This page is about a different variant/trim than selected.
| 3 |
WILL NOT CRANK |
| DESCRIPTION |
- The starter does not work.
|
| POSSIBLE CAUSE |
- Open circuit between ignition switch and starter
- Starter relay No. 2 malfunction

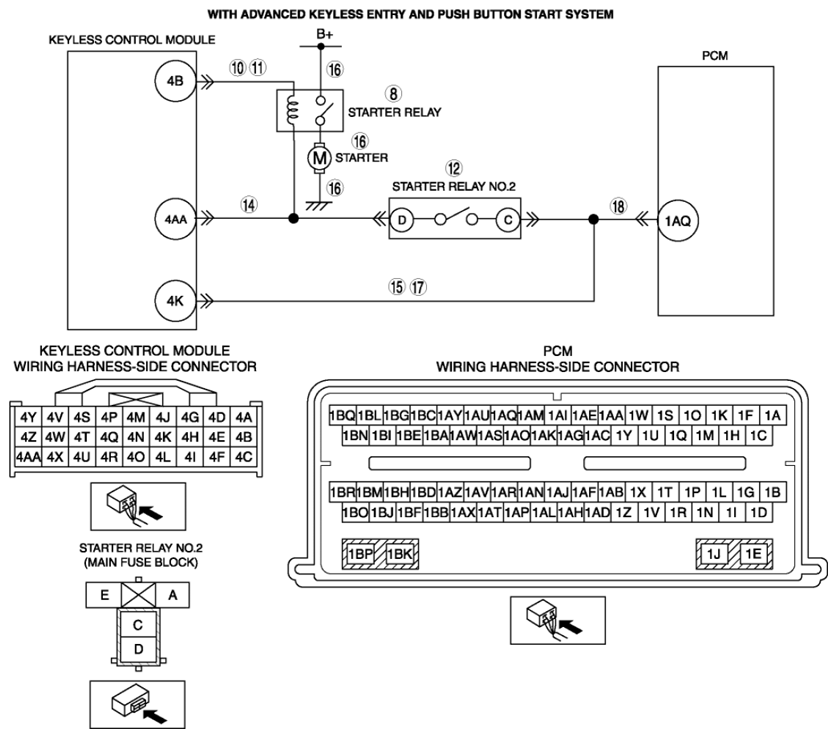

- Open or short circuit in wiring harness between keyless control module and starter relay No. 2 (with advanced keyless entry and push button start system)
- Low or dead battery
- Charging system malfunction
- Starter malfunction
- Seized/hydrolocked engine, drive plate
- Immobilizer system and/or circuit malfunction
- Immobilizer system operating properly. (Ignition key is not registered.)
- Advanced keyless entry and push button start system malfunction (with advanced keyless entry and push button start system)
- TR switch malfunction
|
