Inspection Method for Sensor Connectors or Wiring Harnesses

WARNING: This page is about a different variant/trim than selected.

Connect the M-MDS to the DLC-2.
Switch the ignition to ON (Engine off).
NOTE:
- If the engine starts and runs, perform the following steps during idle.
Access PIDs for the switch you are inspecting.
Slightly shake each connector or wiring harness vertically and horizontally while monitoring the PID.
- If PID value is unstable, inspect for poor connection.

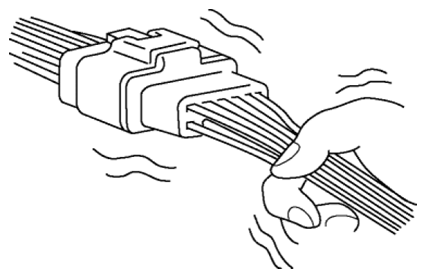

  Fig 1: Inspecting Sensor Connectors Or Wiring Harnesses For Poor Connection
  Courtesy of MAZDA MOTORS CORP.
