Inspection Method for Actuators or Relays

WARNING: This page is about a different variant/trim than selected.

Connect the M-MDS to the DLC-2.
Switch the ignition to ON (Engine off).
NOTE:
- If the engine starts and runs, perform the following steps during idle.
Prepare the output state control function for actuators or relays that you are inspecting.
Vibrate the actuator or relay with your finger for 3 s after output state control function is activated.
- If variable click sound is heard, check for poor connection or poorly mounted actuator or both, or the relay.

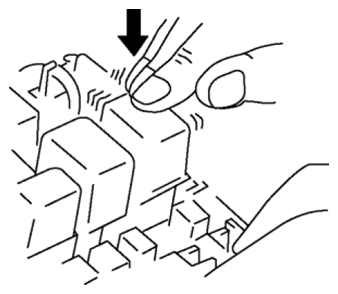

  Fig 1: Checking Actuator And Relay For Poor Connection Or Poor Mounting
  Courtesy of MAZDA MOTORS CORP.
NOTE:
- Vibrating relays too strongly may result in open relays.
