Upper Timing Chain Guide (RH) Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the upper timing chain guide (RH) bolt A.

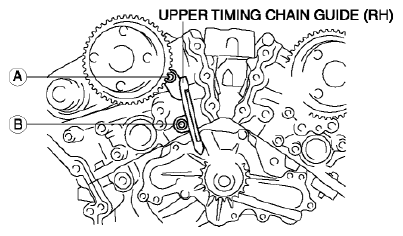

    Fig 1: Identifying Upper Timing Chain Guide (RH) Bolt A And Bolt B
    G08140472
  2. Remove the upper timing chain guide (RH) bolt B.
  3. Move the upper timing chain guide (RH) as shown.

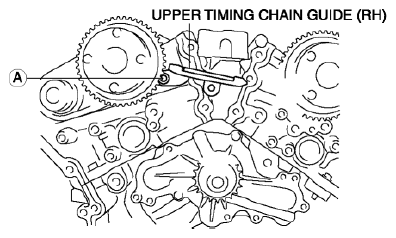

    Fig 2: Identifying Upper Timing Chain Guide (RH) And Bolt A
    G08140473
  4. Retighten the bolt A.
