Thermostat Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the thermostat into the thermostat case with the jiggle-pin at the top.

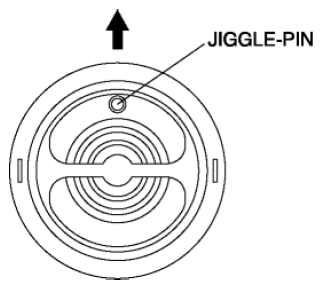

    Fig 1: Identifying Thermostat With Jiggle-Pin At Top
    G08140469
