Part Inspection
WARNING: This page is about a different variant/trim than selected.
- Verify that the battery is fully charged. (See BATTERY INSPECTION [MZI 3.7 V6] .)
- Disconnect the cooling fan motor connector (2 terminals).

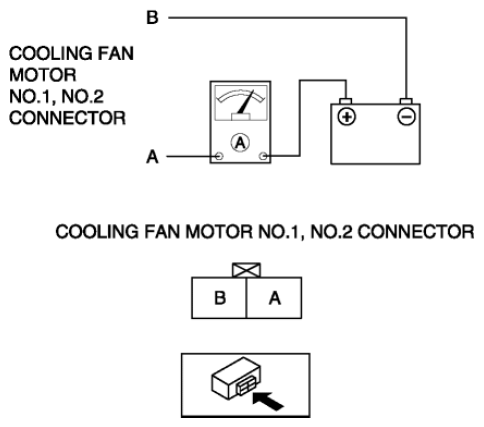

- Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.
- Verify that each cooling fan motors operate smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
Cooling fan motor No.1, No.2 standard current
- 22.5-25.5 A [12 V]
