Variable Valve Timing Actuator Component Removal Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not rotate the crankshaft counterclockwise. The timing chains may bind, causing engine damage.
  1. Rotate the crankshaft counterclockwise until the keyway is in the 9 o'clock position.

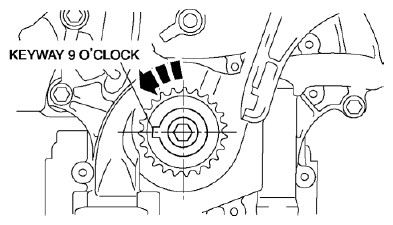

    Fig 1: Rotating Crankshaft Keyway At 9 O'Clock Position
    G08140273
  2. Slowly compress the camshaft timing chain tensioner (LH) piston by hand.
  3. Insert an approx. 1.0 mm {0.039 in}  thin wire or paper clip into the camshaft timing chain tensioner (LH) shown in the figure to hold the tensioner piston.
    Fig 2: Inserting Thin Wire Or Paper Clip Into Camshaft Timing Chain Tensioner (LH)
    G08140274
    NOTE:
    • When the timing chain removed, valve spring pressure will rotate the camshaft (LH) approx. 3 ° to a neutral position.
  4. Install the SST onto the camshafts (LH).

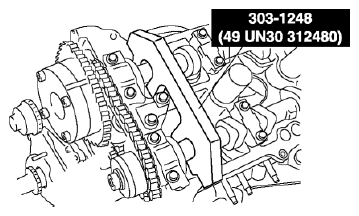

    Fig 3: Identifying SST (303-1248) On Camshafts (LH)
    G08140275
    CAUTION:
    • Always use an appropriate tool (TORX or TORX PLUS). If the appropriate tool is not used, it could result in damage to the bolts or the tools.
    Fig 4: Identifying Appropriate Tool (TORX Or TORX PLUS)
    G08140276

    Tool size

    • TORX: T55
    • TORX PLUS: 55IP
    NOTE:
    • The camshaft sprocket is integrated with the variable valve timing actuator and cannot be disassembled.
  5. Remove the variable valve timing actuator, camshaft timing chain and the exhaust camshaft sprocket of the LH bank as a single unit using the appropriate tools.
  6. Remove the SST from the camshafts (LH).
  7. Slowly compress the camshaft timing chain tensioner (RH) piston by hand.
  8. Insert an approx. 1.0 mm {0.039 in}  thin wire or paper clip into the camshaft timing chain tensioner (RH) shown in the figure to hold the tensioner piston.

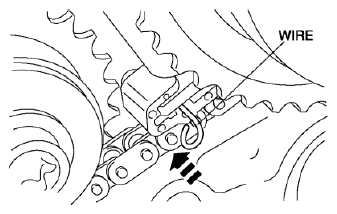

    Fig 5: Inserting Thin Wire Or Paper Clip Into Camshaft Timing Chain Tensioner (RH)
    G08140277
  9. Install the SST onto the camshafts (RH).

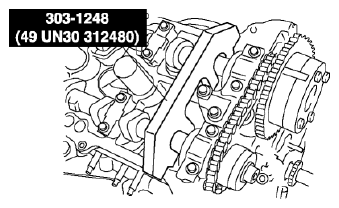

    Fig 6: Identifying SST (303-1248) On Camshafts (RH)
    G08140278
    NOTE:
    • The camshaft sprocket is integrated with the variable valve timing actuator and cannot be disassembled.
  10. Remove the variable valve timing actuator, camshaft timing chain and the exhaust camshaft sprocket of the RH bank as a single unit using the appropriate tools.
  11. Remove the SST from the camshafts (RH).
