OCV Component Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the OCV component bolts in the order shown in the figure.

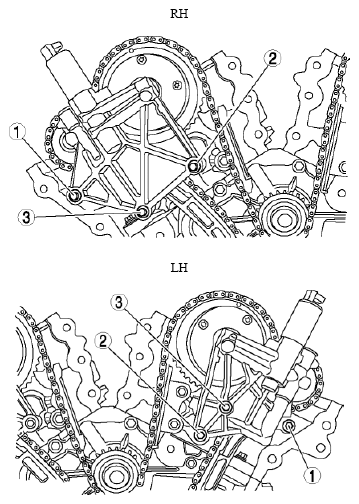

    Fig 1: Identifying OCV Component Bolt Removal Sequence
    G08140300
