OCV Component Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten the OCV component bolts in the order shown in the figure.

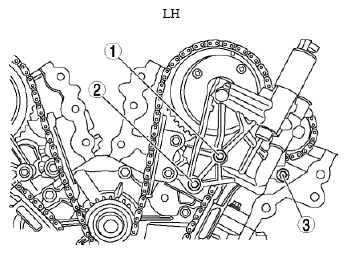

Fig 1: Identifying OCV Component Bolt Tightening Sequence - LH

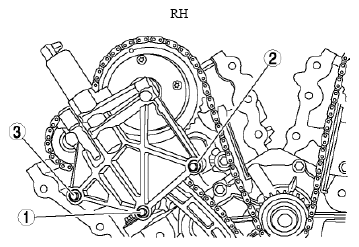

Fig 2: Identifying OCV Component Bolt Tightening Sequence - RH

Tightening torque
- 9-11 N.m {92-112 kgf.cm, 80-97 in.lbf}
