Engine Front Cover and No.3 Engine Mount Bracket Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the engine front cover and No.3 engine mount bracket bolts in the order shown in the figure.

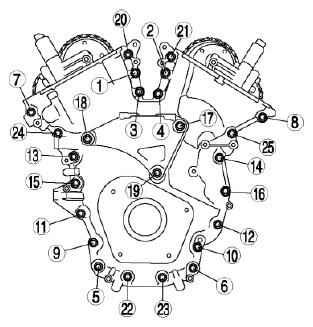

    Fig 1: Identifying Engine Front Cover And No.3 Engine Mount Bracket Bolt Removal Sequence
    G08140298
  2. Install 4 of the engine front cover bolts (finger tightened) into the 4 threaded holes in the engine front cover.
    1. Tighten the bolts one turn at a time in a criss-cross pattern until the engine front cover-to-cylinder block seal is released.
      Fig 2: Locating Engine Front Cover Bolts
      G08140299
    2. Remove the engine front cover.
