Cylinder Head Cover Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder head cover bolts in the order shown.

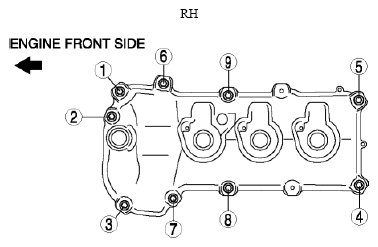

    Fig 1: Identifying Cylinder Head Cover Bolt Removal Sequence - RH
    G08140295
    Fig 2: Identifying Cylinder Head Cover Bolts Removal Order - LH
    G08140296
