Cylinder Head Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

Apply silicone sealant (Loctite 5900) to the mating faces as shown.

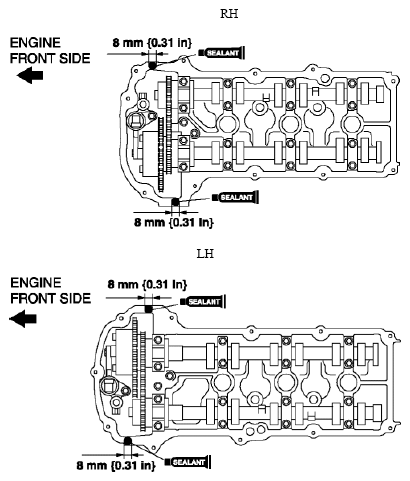

Fig 1: Applying Silicone Sealant (Loctite 5900) To Mating Faces
Install the cylinder head cover with a new gasket.
Tighten the bolts in the order as shown.
CAUTION:
- Install the cylinder head cover before the applied silicone sealant starts to harden.

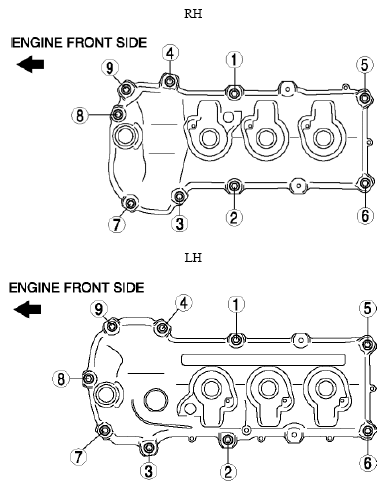

Fig 2: Identifying Cylinder Head Cover Bolt Tightening Sequence

Tightening torque
- 9-11 N.m {92-112 kgf.cm, 80-97 in.lbf}
