Crankshaft Pulley Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the washer from the crankshaft pulley lock bolt, install a suitable spacer (thickness: approx. 14 mm {0.55 in}  , diameter: approx. 30 mm {1.2 in}  ), (similar to front shock absorber lower nut) to the crankshaft pulley lock bolt, and install the crankshaft pulley lock bolt to the crankshaft.
    Fig 1: Identifying Crankshaft Pulley Lock Bolt And Spacer
    G08140292
  2. Remove the crankshaft pulley using the SST  .

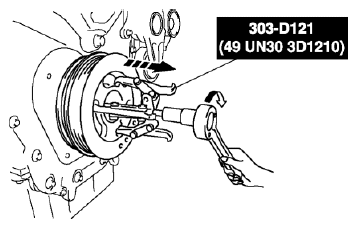

    Fig 2: Removing Crankshaft Pulley Using SST
    G08140293
  3. Remove the crankshaft pulley lock bolt and spacer.
