Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the starter. (See STARTER REMOVAL/INSTALLATION .)

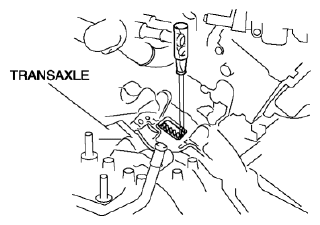

  2. Set a flathead screwdriver to the drive plate in the position indicated in the figure to lock the crankshaft rotation.
    Fig 1: Locking Crankshaft Rotation
    G08140291
  3. Remove the crankshaft pulley lock bolt and washer.
