Crankshaft Pulley Lock Bolt Installation Note

WARNING: This page is about a different variant/trim than selected.

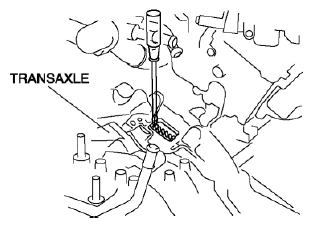

  1. Set a flathead screwdriver to the drive plate in the position indicated in the figure to lock the crankshaft rotation.
    Fig 1: Locking Crankshaft Rotation
    G08140323
  2. Tighten the new crankshaft pulley lock bolt in four steps.
    1. Tighten to 140 N.m {14 kgf.m, 103 ft.lbf}.
    2. Loosen 360 °  (one full turn) in reverse order.
    3. Tighten to 47-53 N.m {4.8-5.4 kgf.m, 35-39 ft.lbf}.
    4. Tighten 85 °-95 °.
  3. Install the starter. (See STARTER REMOVAL/INSTALLATION .)
