Rear Oil Seal Installation Note
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Lubricate the rear oil seal lips and bore with clean engine oil.
- Push the rear oil seal slightly in by hand.

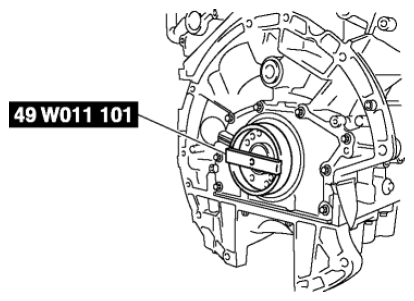

- Tap the rear oil seal in evenly using the SST
and a hammer.
Substitution SST
- 49 W011 101
Outer diameter: 105 mm {4.13 in} or more
Inner diameter: 93-105 mm {3.7-4.1 in}
Tube with board thickness 2 mm {0.08 in} or more
- 49 W011 101
