Rear Oil Seal Replacement: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

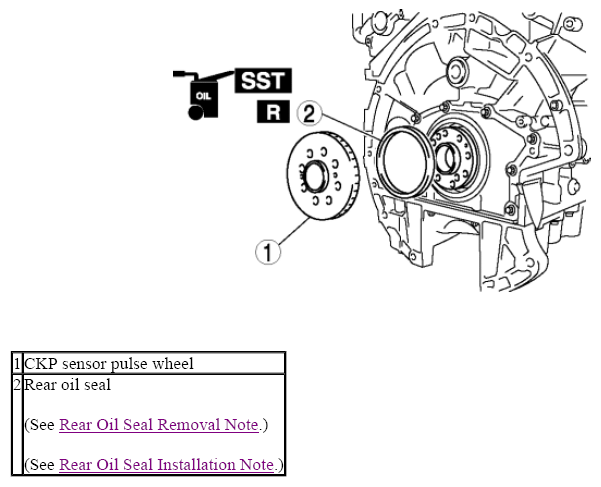

    Fig 1: CKP Sensor Pulse Wheel And Rear Oil Seal
    G08140362
