Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cover as shown in the figure.

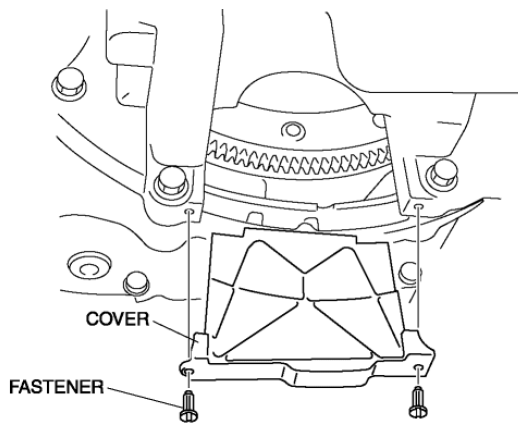

    Fig 1: Identifying Cover And Fastener
    G08140352
  2. Set a wrench to the drive plate bolt at the position shown in the figure to lock the crankshaft rotation.

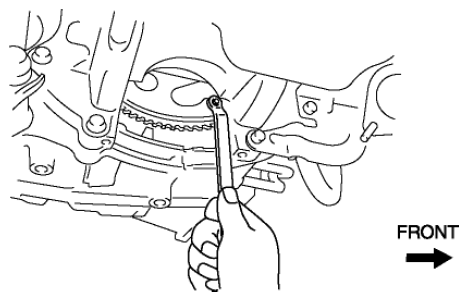

    Fig 2: Setting Wrench To Drive Plate Bolt At Position
    G08140353
  3. Remove the crankshaft pulley lock bolt and washer.
