Crankshaft Pulley Lock Bolt Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Rotate the crankshaft clockwise, and set a wrench to the drive plate bolt at the position shown in the figure to lock the crankshaft rotation.

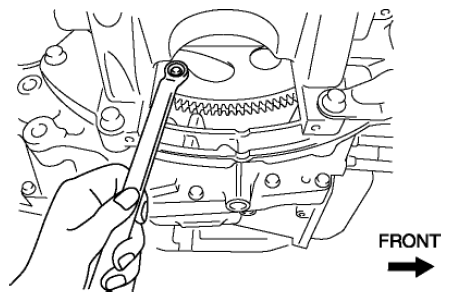

    Fig 1: Setting Wrench To Drive Plate Bolt At Position
    G08140360
  2. Tighten the new crankshaft pulley lock bolt in 4 steps.
    1. Tighten to 140 N.m {14 kgf.m, 103 ft.lbf}  .
    2. Loosen 360 °  (one full turn) in reverse order.
    3. Tighten to 47-53 N.m {4.8-5.4 kgf.m, 35-39 ft.lbf}  .
    4. Tighten 85 °-95 °  .
  3. Verify the tightening torque for the drive plate bolt to which the wrench has been set.
  4. Install the cover as shown in the figure.

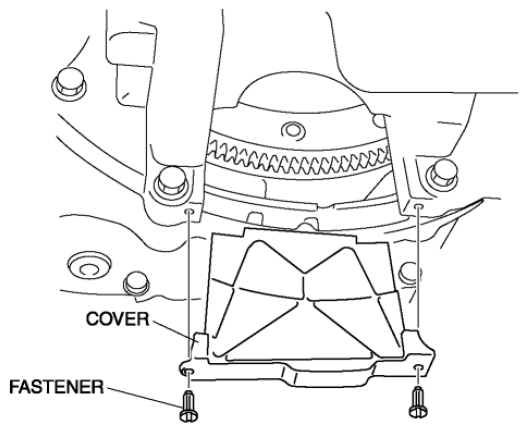

    Fig 2: Identifying Cover And Fastener
    G08140361
