Crankshaft Pulley Installation Note

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Lubricate the contact surface (exterior area of inner diameter) of the front oil seal with clean engine oil.
  1. Install the crankshaft pulley, washer, and SST  to the crankshaft.

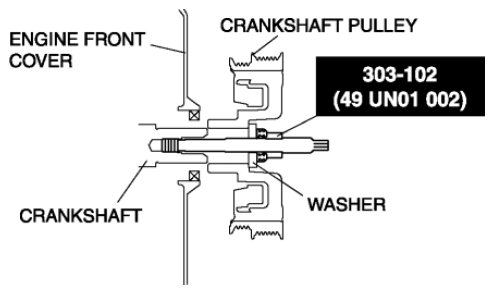

    Fig 1: Installing Crankshaft Pulley, Washer And SST To Crankshaft
    G08140358
  2. Tighten the SST  nut and install the crankshaft pulley.

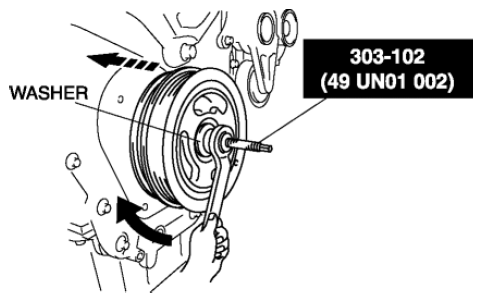

    Fig 2: Tightening SST Nut
    G08140359
